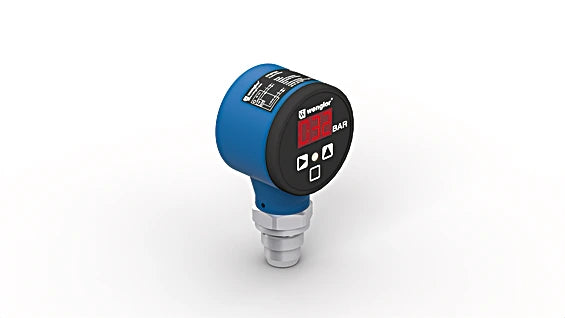

FFMP093 - UniBar Pressure Sensor - 600 Bar Range with Easy Read Display

FFMP093 - UniBar Pressure Sensor - 600 Bar Range with Easy Read Display

SKU: FFMP093 Download PDF

Variant:
  • FFMP093 - UniBar Pressure Sensor - 600 Bar Range with Easy Read Display
Now $721.00
BEFORE   $0.00 Now $721.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision with the UniBar pressure sensors, capable of measuring relative pressure from -1 to 600 bar in various closed systems These sensors feature an integrated display for effortless monitoring and a highly visible switching status indicator, making it easy to identify any sensors in need of maintenance The metallic sealing edge at the process connection eliminates the necessity for additional seals.

Typically, orders are processed and shipped within 15 days.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range 0 ... 40 bar
 Measurement Type relative
 Maximum overload pressure 80 bar
 Bursting pressure 160 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 60 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output / Switching Current < 1 A
 Analog Output 4...20 mA
 Signal source Pressure
 Resolution 10 bit
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 5-pin
 Process Connection G 1/2" CIP-capable
 MTTFd 769.77 a
 Output Analog Output yes
 Relay -NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
 Selectable measurement range yes
