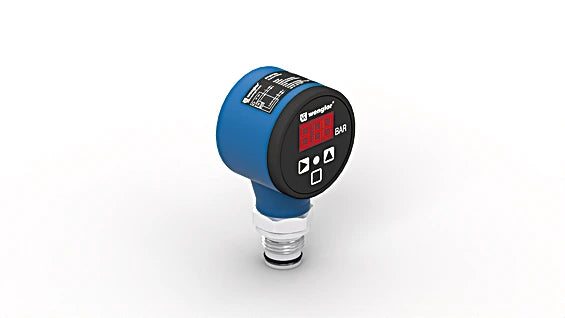

FFMP052 - UniBar Pressure Sensor -1 to 600 Bar with Display

FFMP052 - UniBar Pressure Sensor -1 to 600 Bar with Display

SKU: FFMP052 Download PDF

Variant:
  • FFMP052 - UniBar Pressure Sensor -1 to 600 Bar with Display
Now $678.00
BEFORE   $0.00 Now $678.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the reliability of UniBar pressure sensors, engineered to monitor relative pressure within closed systems across a range of -1 to 600 bar These sensors come equipped with an integrated display, making them user-friendly by providing a clear visibility of the switching status, which aids in quickly identifying sensors that may require maintenance With a metallic sealing edge on the process connection, there’s no need for extra seals, ensuring a streamlined installation.

Perfect for various applications, these sensors guarantee precision and efficiency.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range 0 ... 10 bar
 Measurement Type relative
 Maximum overload pressure 20 bar
 Bursting pressure 40 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Switching Output / Switching Current < 250 mA
 Switching Output Voltage Drop < 2 V
 Analog Output yes
 Signal source Pressure
 Resolution 10 bit
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Rubber, FKM
 Degree of Protection IP65 *
 Connection M12 × 1; 4-pin
 Process Connection G 1/2"
 MTTFd 1,201.51 a
 PNP NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
 Other parameters Selectable measurement range
