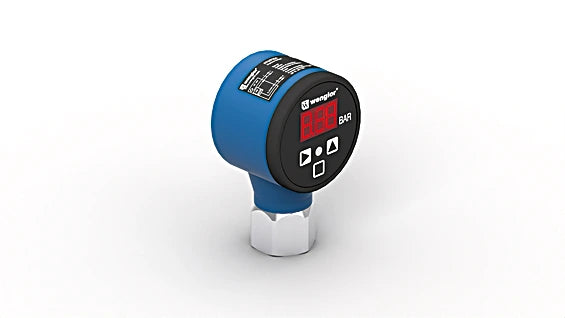

FFMP031 - UniBar Pressure Sensor - 600 Bar Range with Integrated Display

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, expertly designed to measure relative pressure in closed systems across a range of -1 to 600 bar These sensors boast an integrated display that simplifies operation The clear visibility of the switching status allows for quick identification and maintenance of affected sensors, making them an efficient choice for various applications.

Features and Benefits:

•Simple operation via the display.

•Highly visible output indicator.

•Sensor-specific data.

•Measuring range of 0 ... 25 bar.

•Measurement type is relative.

•Maximum overload pressure of 50 bar.

•Bursting pressure of 100 bar.

•Switching hysteresis of 2%.

•Measuring error is < ± 0.5%.

•Temperature drift of 0.025 %/K.

•Environmental conditions support a temperature of medium of -25 ... 80 °C.

•Ambient temperature range of -25 ... 80 °C.

•Shock resistance per DIN IEC 68-2-27 of 30 g / 11 ms.

•Vibration resistance per DIN IEC 60068-2-6 of 20 g (10...2000 Hz).

Specifications:
