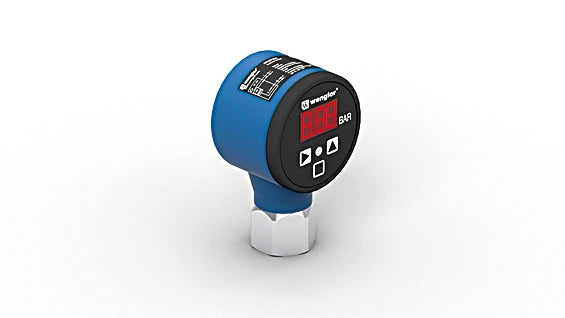

FFMP023 - UniBar Pressure Sensor for -1 to 600 Bar with Display

FFMP023 - UniBar Pressure Sensor for -1 to 600 Bar with Display

SKU: FFMP023 Download PDF

Variant:
  • FFMP023 - UniBar Pressure Sensor for -1 to 600 Bar with Display
Now $632.00
BEFORE   $0.00 Now $632.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, engineered for precise measurement of relative pressure in closed systems across various mediums, ranging from -1 to 600 bar These sensors come equipped with a user-friendly integrated display, along with a bright status indicator that simplifies the process of identifying and maintaining sensors in need of attention.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

Specifications:

 Measuring Range 0 ... 400 bar
 Measurement Type relative
 Maximum overload pressure 800 bar
 Bursting pressure 1,600 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Switching Current < 250 mA
 Voltage Drop < 2 V
 Analog Output yes
 Signal source Pressure
 Resolution 10 bit
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 4-pin
 Process Connection G 3/8"
 MTTFd 1,201.51 a
 PNP NO yes
 Adjustable parameters NC, NC/NO, NO
 Selectable measurement range All other parameters can be found in the product documentation.
