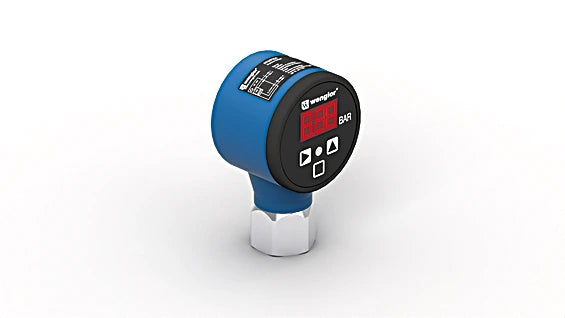

FFMP021 - UniBar 600 Bar Pressure Sensor with Integrated Display

FFMP021 - UniBar 600 Bar Pressure Sensor with Integrated Display

SKU: FFMP021 Download PDF

Variant:
  • FFMP021 - UniBar 600 Bar Pressure Sensor with Integrated Display
Now $632.00
BEFORE   $0.00 Now $632.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The UniBar pressure sensors are engineered to accurately gauge relative pressure in closed systems for a variety of media, offering a measurement range from -1 to 600 bar Featuring an integrated display for user-friendliness, these sensors make it simple to monitor status with their clear switching indication, allowing for quick identification and maintenance of any sensors that need attention.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

    •Liquids.

    •Gases.

Specifications:

 Measuring Range 0 ... 250 bar
 Measurement Type relative
 Maximum overload pressure 500 bar
 Bursting pressure 1,000 bar
 Setting Range 4 ... 100 %
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Switching Output < 250 mA
 Voltage Drop < 2 V
 Analog Output 4...20 mA
 Pressure Signal source
 Resolution 10 bit
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Process Connection G 1/4"
 MTTFd 1,201.51 a
 Output Analog Output: yes, PNP NO: yes
 Adjustable parameters NC, NC/NO, NO
 Other parameters Selectable measurement range
