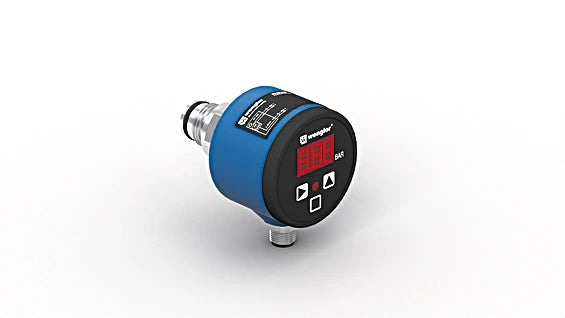

FFAP277 - UniBar Pressure Sensor, -1 to 600 Bar Range with Display

FFAP277 - UniBar Pressure Sensor, -1 to 600 Bar Range with Display

SKU: FFAP277 Download PDF

Variant:
  • FFAP277 - UniBar Pressure Sensor, -1 to 600 Bar Range with Display
Now $678.00
BEFORE   $0.00 Now $678.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise monitoring with the UniBar pressure sensors, expertly designed to gauge relative pressure in closed systems across various mediums, ranging from -1 to 600 bar Equipped with a built-in display, these sensors facilitate easy operation and offer a clear indication of switching status, ensuring quick identification during maintenance tasks This functionality is essential for effective measurement and monitoring within specified parameters.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection due to the small pressure membrane.

    •Highly visible output indicator.

    •Measuring relative pressure in liquids and gases..

Specifications:

 Measuring Range 0 ... 40 bar
 Measurement Type relative
 Maximum overload pressure 80 bar
 Bursting pressure 160 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms per DIN IEC 68-2-27
 Vibration resistance 20 g (10...2000 Hz) per DIN IEC 60068-2-6
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA (Ub = 24 V)
 Number of Switching Outputs 2
 Response Time 30 ms
 Switching Output / Switching Current < 250 mA
 Switching Output Voltage Drop < 2 V
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 4-pin
 Process Connection G 1/2"
