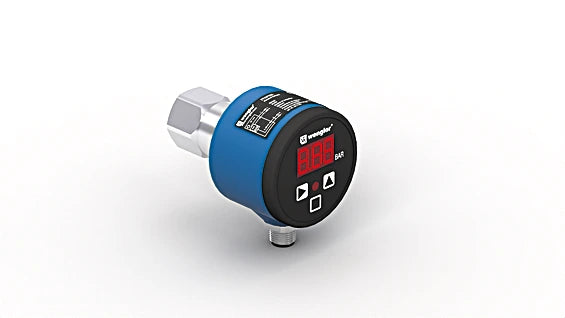

FFAP263 - UniBar Pressure Sensor, -1 to 600 Bar with Display

FFAP263 - UniBar Pressure Sensor, -1 to 600 Bar with Display

SKU: FFAP263 Download PDF

Variant:
  • FFAP263 - UniBar Pressure Sensor, -1 to 600 Bar with Display
Now $632.00
BEFORE   $0.00 Now $632.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, engineered to accurately gauge relative pressure in closed systems across a range of -1 to 600 bar User-friendly and practical, these sensors come with a built-in display for straightforward operation The brightly illuminated status indicator makes it easy to quickly identify sensors in need of maintenance, streamlining your upkeep efforts.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

    •Allows for easy localization during maintenance.

    •Measuring relative pressure in liquids and gases.

Specifications:

 Measuring Range 0 ... 160 bar
 Measurement Type relative
 Maximum overload pressure 320 bar
 Bursting pressure 640 bar
 Setting Range 4 ... 100 %
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA (Ub = 24 V)
 Number of Switching Outputs 2
 Response Time 30 ms
 Switching Current < 250 mA
 Voltage Drop < 2 V
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT; Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L); Stainless steel, V4A (1.4435/316L); Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Process Connection G 1/2"
