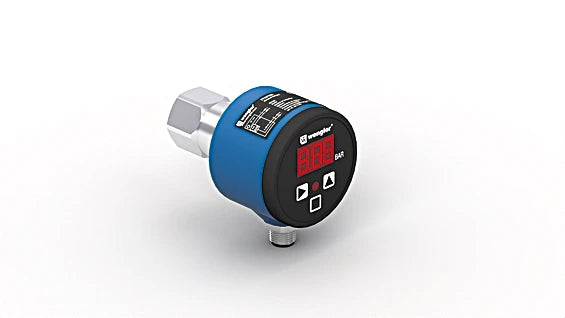

FFAP257 - Easy-to-Use Pressure Sensor with Display, Range -1 to 600 Bar

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision with UniBar pressure sensors, capable of measuring relative pressure in closed systems across a range from -1 to 600 bar Featuring an intuitive integrated display, these sensors ensure effortless usability The prominent switching status indicator allows for quick identification of sensors during maintenance tasks, enhancing efficiency Designed for straightforward operation, each sensor provides clear output indicators that present essential sensor data at a glance.

Features and Benefits:

•Simple operation via the display.

•Highly visible output indicator.

•Measuring range between -1 to 600 bar.

•Maximum overload pressure of 80 bar.

•Bursting pressure of 160 bar.

•Switching hysteresis at 2%.

•Measuring error of less than ± 0.5%.

•Temperature drift of 0.025%/K.

•Short circuit protection.

•Reverse polarity protection.

•Pressure measurement in closed systems for various media including liquids and gases.

Specifications:
