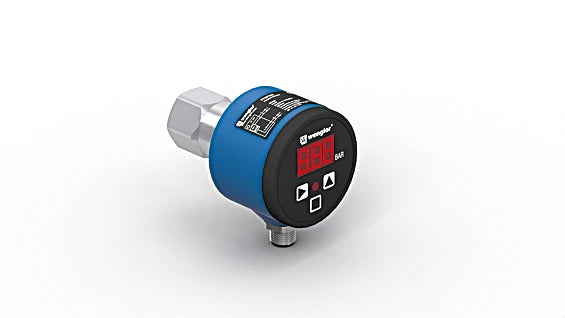

FFAP244 - UniBar Pressure Sensor for Liquids & Gases, -1 to 600 Bar

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, expertly crafted to accurately gauge relative pressure within closed systems for various mediums, ranging from -1 to 600 bar Featuring an integrated display, these sensors offer user-friendly operation, making it simple to monitor readings at a glance The clear switching status indicator allows for quick identification of sensors needing maintenance Suitable for both liquids and gases, UniBar sensors provide specific data to ensure precise measurements in any application.

Features and Benefits:

•Simple operation via the display.

•Highly visible output indicator.

•Sensor-specific data.

•Measuring Range: 0 ... 0.5 bar.

•Measurement Type: relative.

•Maximum overload pressure: 1 bar.

•Bursting pressure: 1.5 bar.

•Setting Range: 4 ... 100 %.

•Switching Hysteresis: 2 %.

•Measuring error: < ± 0.5 %.

•Temperature Drift: 0.025 %/K.

•Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms.

•Vibration resistance per DIN IEC 60068-2-6: 20 g (10...2000 Hz).

Specifications:
