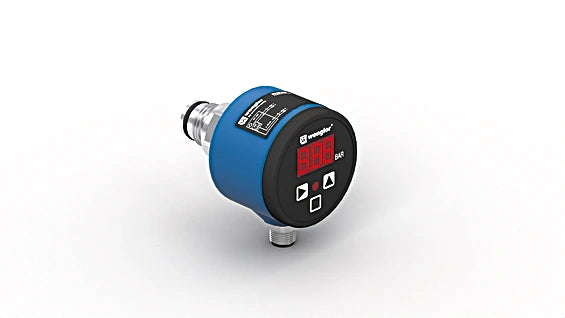

FFAP203 - UniBar Pressure Sensor with Integrated Display, 600 Bar Range

FFAP203 - UniBar Pressure Sensor with Integrated Display, 600 Bar Range

SKU: FFAP203 Download PDF

Variant:
  • FFAP203 - UniBar Pressure Sensor with Integrated Display, 600 Bar Range
Now $721.00
BEFORE   $0.00 Now $721.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise pressure monitoring with the UniBar pressure sensors, capable of measuring relative pressure in sealed systems from -1 to 600 bar These sensors feature an intuitive built-in display for effortless operation The clear switching status indicator allows for quick identification during maintenance, enhancing efficiency Additional highlights include a piggable design with flush mounting and a compact pressure membrane that saves space during installation.

Perfect for any medium, these sensors are engineered for reliability and ease of use .

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range 0 ... 40 bar
 Measurement Type relative
 Maximum overload pressure 80 bar
 Bursting pressure 160 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output / Switching Current (24 VDC) < 1 A
 Analog Output 0...10 V
 Signal source Pressure
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 5-pin
 Process Connection G 1/2"
 MTTFd (EN ISO 13849-1) 769.77 a
 Output Analog Output yes
 Relay -NO yes
 Circuit NC, NC/NO, NO
