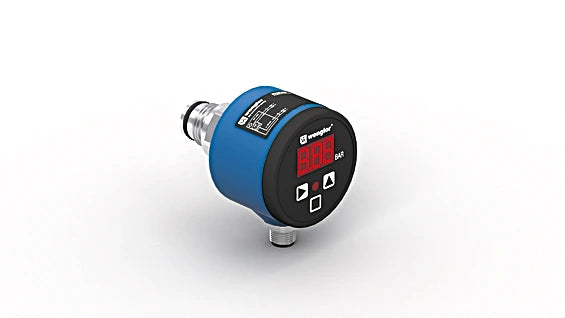

FFAP201 - Easy-to-Use Pressure Sensor, -1 to 600 Bar Range

FFAP201 - Easy-to-Use Pressure Sensor, -1 to 600 Bar Range

SKU: FFAP201 Download PDF

Variant:
  • FFAP201 - Easy-to-Use Pressure Sensor, -1 to 600 Bar Range
Now $721.00
BEFORE   $0.00 Now $721.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The UniBar pressure sensors offer precise measurement of relative pressure within sealed systems, accommodating a range from -1 to 600 bar Equipped with a user-friendly integrated display, these sensors allow for easy operation Additionally, the bright switching status indicator facilitates the quick identification of sensors that require maintenance, streamlining upkeep and ensuring efficiency.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

    •Used for measuring relative pressure in liquids and gases.

Specifications:

 Measuring Range 0 ... 25 bar
 Measurement Type relative
 Maximum overload pressure 50 bar
 Bursting pressure 100 bar
 Setting Range 4 ... 100 %
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output < 1 A
 Analog Output 0...10 V
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 5-pin
 Process Connection G 1/2"
 MTTFd 769.77 a
 Output Analog Output yes
 Relay -NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
 Other parameters Selectable measurement range
