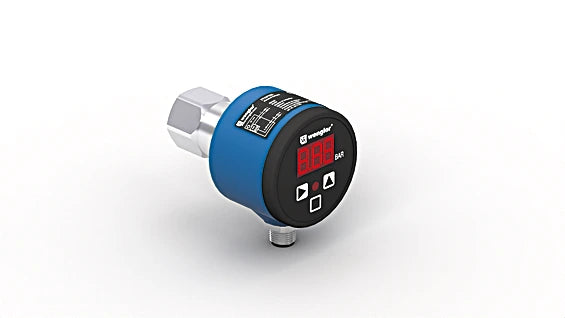

FFAP191 - UniBar Pressure Sensor, -1 to 600 Bar, Easy-to-Read Display

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The UniBar pressure sensors provide precise measurements of relative pressure in any closed system, across a range of -1 to 600 bar Featuring an integrated display for user-friendly operation, these sensors allow for easy monitoring The prominently visible switching status display aids in swiftly identifying the specific sensors that require maintenance, streamlining your upkeep processes.

Features and Benefits:

•Simple operation via the display.

•Highly visible output indicator.

•Sensor-specific data.

•Measuring Range: 0 ... 250 bar.

•Measurement Type: relative.

•Maximum overload pressure: 500 bar.

•Bursting pressure: 1,000 bar.

•Setting Range: 4 ... 100 %.

•Medium: Liquids, gases.

•Switching Hysteresis: 2 %.

•Measuring error: < ± 0.5 %.

•Temperature Drift: 0.025 %/K.

•Environmental conditions: Temperature of medium -25 ... 80 °C, Ambient temperature -25 ... 80 °C.

•Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms.

•Vibration resistance per DIN IEC 60068-2-6: 20 g (10...2000 Hz).

•Supply Voltage: 16 ... 32 V DC.

•Current Consumption: < 60 mA.

•Number of Switching Outputs: 1.

•Response Time: 30 ms.

•Relay Output / Switching Current (24 VDC): < 1 A.

•Analog Output: 0...10 V.

•Signal source: Pressure.

•Resolution: 10 bit.

•Short Circuit Protection: yes.

•Reverse Polarity Protection: yes.

•Protection Class: III.

•Setting Method: Menu.

•Housing Material: Plastic, PBT and PC.

•Material in contact with media: Stainless steel, V4A (1.4404 / 316L) and V4A (1.4435/316L), Rubber, FKM.

•Degree of Protection: IP67.

•Connection: M12 × 1; 5-pin.

•Process Connection: G 1/4".
