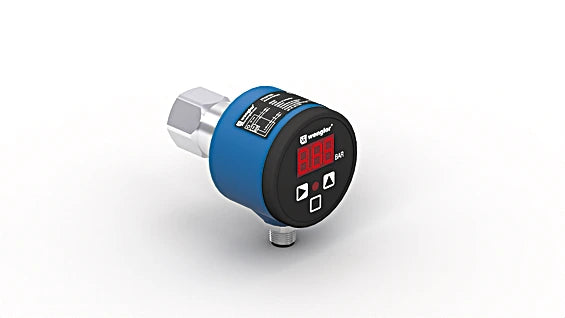

FFAP177 - User-Friendly Pressure Sensor -1 to 600 Bar with Display

FFAP177 - User-Friendly Pressure Sensor -1 to 600 Bar with Display

SKU: FFAP177 Download PDF

Variant:
  • FFAP177 - User-Friendly Pressure Sensor -1 to 600 Bar with Display
Now $572.00
BEFORE   $0.00 Now $572.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, engineered to accurately gauge relative pressure in closed systems across a range of -1 to 600 bar These sensors come with a built-in display that simplifies usage by providing a clear visual indication of the switching status This feature allows for quick identification of sensors during maintenance, enhancing efficiency With intuitive controls and a prominently displayed sensor-specific data output, the UniBar sensors deliver a user-friendly experience for all your monitoring needs.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

Specifications:

 Measuring Range: 0 ... 25 bar
 Measurement Type: relative
 Maximum overload pressure: 50 bar
 Bursting pressure: 100 bar
 Setting Range: 4 ... 100 %
 Medium: Liquids, gases
 Switching Hysteresis: 2 %
 Measuring error: < ± 0.5 %
 Temperature Drift: 0.025 %/K
 Temperature of medium: -25 ... 80 °C
 Ambient temperature: -25 ... 80 °C
 EMC: DIN EN 61326-2-3
 Shock resistance: 30 g / 11 ms
 Vibration resistance: 20 g (10...2000 Hz)
 Supply Voltage: 16 ... 32 V DC
 Current Consumption: < 60 mA
 Number of Switching Outputs: 1
 Response Time: 30 ms
 Relay Output: < 1 A
 Analog Output: yes
 Signal source: Pressure
 Resolution: 10 bit
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Protection Class: III
 Setting Method: Menu
 Housing Material: Plastic, PBT; Plastic, PC
 Material Control Panel: Polyester
 Material in contact with media: Stainless steel, V4A (1.4404 / 316L); Stainless steel, V4A (1.4435/316L); Rubber, FKM
 Degree of Protection: IP67 *
 Connection: M12 × 1; 5-pin
 Process Connection: G 1/2"
 MTTFd: 769.77 a
 Relay -NO: yes
 Adjustable parameters: Circuit NC, NC/NO, NO
 Other parameters: Selectable measurement range
