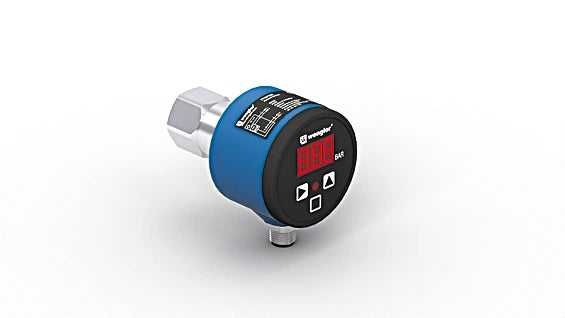

FFAP152 - Easy-to-Use Pressure Sensor, -1 to 600 Bar Range

FFAP152 - Easy-to-Use Pressure Sensor, -1 to 600 Bar Range

SKU: FFAP152 Download PDF

Variant:
  • FFAP152 - Easy-to-Use Pressure Sensor, -1 to 600 Bar Range
Now $572.00
BEFORE   $0.00 Now $572.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, engineered to accurately measure relative pressure across various closed systems, supporting a robust range from -1 to 600 bar User-friendly features include an integrated display for effortless monitoring With a prominently visible status indicator, quickly identifying sensors in need of maintenance becomes a straightforward task Perfect for ensuring reliable performance in a variety of applications.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

    •Measurement of relative pressure in closed systems for liquids and gases.

Specifications:

 Measuring Range 0 ... 10 bar
 Measurement Type relative
 Maximum overload pressure 20 bar
 Bursting pressure 40 bar
 Setting Range 4 ... 100 %
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output / Switching Current < 1 A
 Analog Output 4...20 mA
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Housing Material Plastic, PBT and PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L) and V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP65
 Connection M12 × 1; 5-pin
 Process Connection G 1/4"
 MTTFd 769.77 a
 Output Analog Output yes
 Relay -NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
