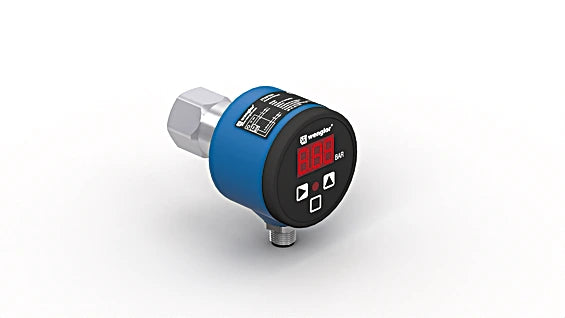

FFAP143 - UniBar Pressure Sensor, -1 to 600 Bar Measurement Range

FFAP143 - UniBar Pressure Sensor, -1 to 600 Bar Measurement Range

SKU: FFAP143 Download PDF

Variant:
  • FFAP143 - UniBar Pressure Sensor, -1 to 600 Bar Measurement Range
Now $721.00
BEFORE   $0.00 Now $721.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, perfect for gauging relative pressure in closed systems across a variety of mediums With an impressive measurement range from -1 to 600 bar, these sensors are crafted for ease of use The built-in display provides real-time monitoring, while the prominent output indicator allows for swift identification of sensors requiring maintenance, streamlining your maintenance operations effectively.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

    •Pressure measurement in closed systems for various liquids and gases..

Specifications:

 Measuring Range: -1...600 bar
 Measurement Type: relative
 Maximum overload pressure: 1 bar
 Bursting pressure: 1.5 bar
 Setting Range: 4...100 %
 Medium: Liquids, gases
 Switching Hysteresis: 2 %
 Measuring error: < ± 0.5 %
 Temperature Drift: 0.025 %/K
 Environmental conditions Temperature of medium: -25...80 °C
 Ambient temperature: -25...80 °C
 EMC: DIN EN 61326-2-3
 Shock resistance: 30 g / 11 ms
 Vibration resistance: 20 g (10...2000 Hz)
 Supply Voltage: 16...32 V DC
 Current Consumption: < 60 mA
 Number of Switching Outputs: 1
 Response Time: 30 ms
 Relay Output/Switching Current: < 1 A
 Analog Output: 0...10 V
 Signal source: Pressure
 Resolution: 10 bit
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Protection Class: III
 Setting Method: Menu
 Housing Material: Plastic, PBT
 Material Control Panel: Polyester
 Material in contact with media: Stainless steel, V4A (1.4404 / 316L)
 Degree of Protection: IP65
 Connection: M12 × 1; 5-pin
 Process Connection: G 1/8"
 MTTFd: 769.77 a
 Output Analog Output: yes
 Relay -NO: yes
 Adjustable parameters Circuit: NC, NC/NO, NO
 Other parameters: Selectable measurement range
