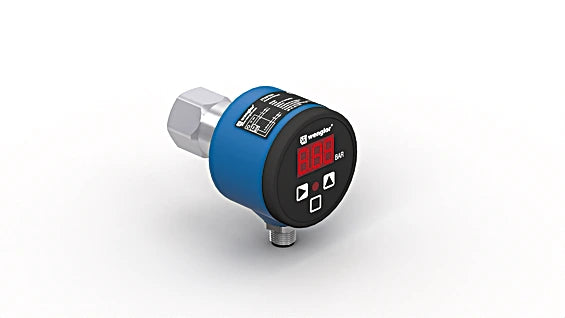

FFAP134 - Easy-to-Use UniBar Pressure Sensor with Integrated Display, -1 to 600 Bar

FFAP134 - Easy-to-Use UniBar Pressure Sensor with Integrated Display, -1 to 600 Bar

SKU: FFAP134 Download PDF

Variant:
  • FFAP134 - Easy-to-Use UniBar Pressure Sensor with Integrated Display, -1 to 600 Bar
Now $721.00
BEFORE   $0.00 Now $721.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The UniBar pressure sensors are designed for measuring relative pressure in closed systems, accommodating a range of -1 to 600 bar Featuring an intuitive integrated display, these sensors simplify operation, enabling users to effortlessly monitor pressure levels The clearly visible output indicator makes it easy to identify and locate sensors that require maintenance With straightforward functionality and a user-friendly interface, the UniBar pressure sensors are a reliable choice for various applications.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

    •.

Specifications:

 Measuring Range -0.5 ... 0 bar
 Measurement Type relative
 Maximum overload pressure 1 bar
 Bursting pressure 1.5 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output < 1 A
 Analog Output 0...10 V
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L); Stainless steel, V4A (1.4435/316L); Rubber, FKM; Ceramic
 Degree of Protection IP65 *
 Connection M12 × 1; 5-pin
 Process Connection G 1/2"
 MTTFd (EN ISO 13849-1) 769.77 a
 Output Analog Output yes
 Relay -NO yes
 Adjustable parameters Circuit NC; NC/NO; NO
