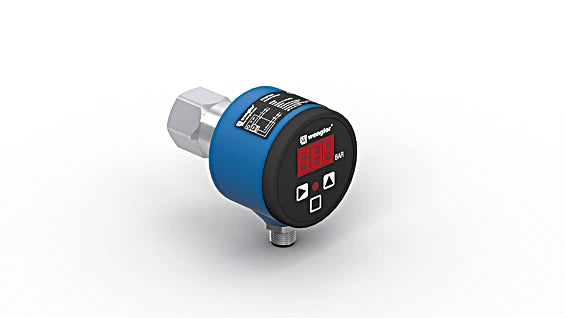

FFAP125 - Easy-to-Use Pressure Sensor, Measures -1 to 600 Bar

FFAP125 - Easy-to-Use Pressure Sensor, Measures -1 to 600 Bar

SKU: FFAP125 Download PDF

Variant:
  • FFAP125 - Easy-to-Use Pressure Sensor, Measures -1 to 600 Bar
Now $721.00
BEFORE   $0.00 Now $721.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, your go-to solution for accurately measuring relative pressure in closed systems across any medium These sensors cover a wide range from -1 to 600 bar With an integrated display for effortless operation, you can quickly check pressure levels The clear switching status display makes it easy to identify and localize sensors in need of maintenance, enhancing your efficiency and productivity.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

    •Measuring relative pressure in closed systems of liquids and gases.

Specifications:

 Measuring Range 0 ... 0.5 bar
 Measurement Type relative
 Maximum overload pressure 1 bar
 Bursting pressure 1.5 bar
 Setting Range 4 ... 100 %
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output < 1 A
 Analog Output 4...20 mA
 Signal source Pressure
 Resolution 10 bit
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM, Ceramic
 Degree of Protection IP65
 Connection M12 × 1; 5-pin
 Process Connection G 1/8"
 MTTFd 769.77 a
 Output Analog Output yes
 Relay -NO yes
 Adjustable parameters Circuit: NC, NC/NO, NO, Selectable measurement range
