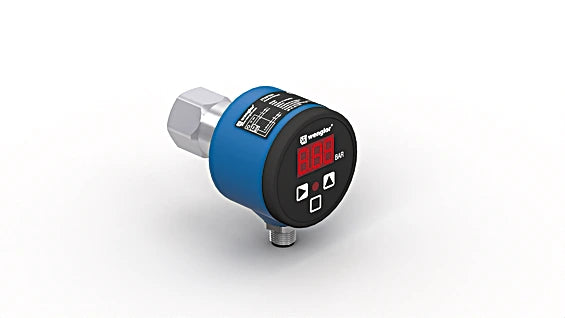

FFAP115 - Easy-to-Use Pressure Sensor, -1 to 600 Bar Range

SKU: SKU: FFAP115 Download PDF

Variant:

FFAP115 - Easy-to-Use Pressure Sensor, -1 to 600 Bar Range

Now $721.00

~~BEFORE $0.00~~ Now $721.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, designed for precise measurement of relative pressure within closed systems across a wide range from -1 to 600 bar These sensors feature a user-friendly integrated display, allowing for effortless operation The clear status display makes it easy to identify sensors that require maintenance, streamlining your processes Please note, this product has been discontinued.

Explore similar alternatives by clicking here.

Features and Benefits:

•Simple operation via the display.

•Highly visible output indicator.

•Sensor-specific data.

Specifications:

Measuring Range	-1 ... 0 bar
Measurement Type	relative
Maximum overload pressure	5 bar
Bursting pressure	6 bar
Setting Range	4 ... 100 %
Medium	Liquids, gases
Switching Hysteresis	2 %
Measuring error	< ± 0.5 %
Temperature Drift	0.025 %/K
Temperature of medium	-25 ... 80 °C
Ambient temperature	-25 ... 80 °C
EMC	DIN EN 61326-2-3
Shock resistance per DIN IEC 68-2-27	30 g / 11 ms
Vibration resistance per DIN IEC 60068-2-6	20 g (10...2000 Hz)
Supply Voltage	16 ... 32 V DC
Current Consumption (Ub = 24 V)	< 60 mA
Number of Switching Outputs	1
Response Time	30 ms
Relay Output / Switching Current (24 VDC)	< 1 A
Analog Output	yes
Signal source	Pressure
Resolution	10 bit
Current Output Load Resistance	< 500 Ohm
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Protection Class	III
Setting Method	Menu
Housing Material	Plastic, PBT
Material Control Panel	Polyester
Material in contact with media	Stainless steel, V4A (1.4404 / 316L)
Degree of Protection	IP65 *
Connection	M12 × 1; 5-pin
Process Connection	G 1/8"
MTTFd (EN ISO 13849-1)	769.77 a
Relay -NO	yes
Adjustable parameters Circuit	NC, NC/NO, NO
Other parameters	Selectable measurement range
