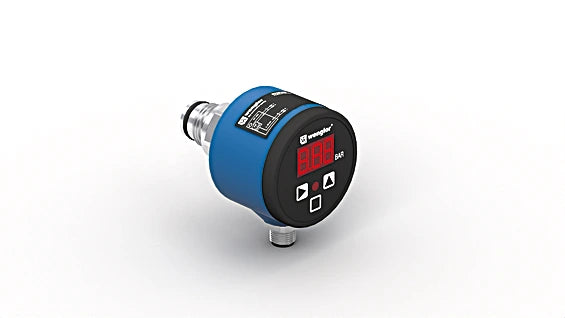

FFAP098 - UniBar 0-250 Bar Pressure Sensor with Display

FFAP098 - UniBar 0-250 Bar Pressure Sensor with Display

SKU: FFAP098 Download PDF

Variant:
  • FFAP098 - UniBar 0-250 Bar Pressure Sensor with Display
Now $781.00
BEFORE   $0.00 Now $781.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise pressure monitoring with the UniBar pressure sensors, capable of measuring relative pressures in closed systems from -1 to 600 bar User-friendly and equipped with an integrated display, these sensors feature a highly visible indicator for quick identification during maintenance Key Highlights: - Easy operation through the display interface - Piggable design with flush mounting capabilities - Compact process connection featuring a small pressure membrane - Clear output indicator for enhanced visibility This sensor specifically provides a measuring range of 0 to 250 bar, making it an excellent choice for accurate relative pressure measurement applications.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range 0 ... 250 bar
 Measurement Type relative
 Maximum overload pressure 500 bar
 Bursting pressure 1,000 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms per DIN IEC 68-2-27
 Vibration resistance 20 g (10...2000 Hz) per DIN IEC 60068-2-6
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Switching Output < 250 mA
 Switching Output Voltage Drop < 2 V
 Analog Output 4...20 mA
 Signal source Pressure
 Resolution 10 bit
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT; Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L); Stainless steel, V4A (1.4435/316L); Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Process Connection G 1/2"
 MTTFd 1,201.51 a
 Output Analog Output yes
 PNP NO yes
 Adjustable parameters Circuit NC; NC/NO; NO
 Other parameters Selectable measurement range; All other parameters can be found in the product documentation.
