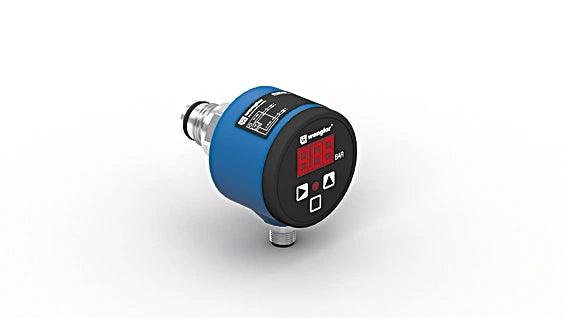

FFAP091 - UniBar Pressure Sensor, -1 to 600 Bar, Integrated Display

FFAP091 - UniBar Pressure Sensor, -1 to 600 Bar, Integrated Display

SKU: FFAP091 Download PDF

Variant:
  • FFAP091 - UniBar Pressure Sensor, -1 to 600 Bar, Integrated Display
Now $678.00
BEFORE   $0.00 Now $678.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision with the UniBar pressure sensors, expertly crafted to monitor relative pressure in closed systems across an impressive range of -1 to 600 bar These sensors boast an intuitive integrated display, making them user-friendly Plus, the clearly visible status indicators simplify the identification of sensors that require maintenance, streamlining your upkeep processes.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range: 0 ... 25 bar
 Measurement Type: relative
 Maximum overload pressure: 50 bar
 Bursting pressure: 100 bar
 Setting Range: 4 ... 100 %
 Medium: Liquids, gases
 Switching Hysteresis: 2 %
 Measuring error: < ± 0.5 %
 Temperature Drift: 0.025 %/K
 Temperature of medium: -25 ... 80 °C
 Ambient temperature: -25 ... 80 °C
 EMC: DIN EN 61326-2-3
 Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6: 20 g (10...2000 Hz)
 Supply Voltage: 16 ... 32 V DC
 Current Consumption (Ub = 24 V): < 60 mA
 Number of Switching Outputs: 1
 Response Time: 30 ms
 Switching Output / Switching Current: < 250 mA
 Switching Output Voltage Drop: < 2 V
 Analog Output: 0...10 V
 Signal source: Pressure
 Resolution: 10 bit
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Protection Class: III
 Setting Method: Menu
 Housing Material: Plastic, PBT, Plastic, PC
 Material Control Panel: Polyester
 Material in contact with media: Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection: IP67 *
 Connection: M12 × 1; 4-pin
 Process Connection: G 1/2"
 MTTFd (EN ISO 13849-1): 1,201.51 a
 Output Analog Output: yes
 PNP NO: yes
 Adjustable parameters Circuit: NC, NC/NO, NO
 Other parameters: Selectable measurement range
