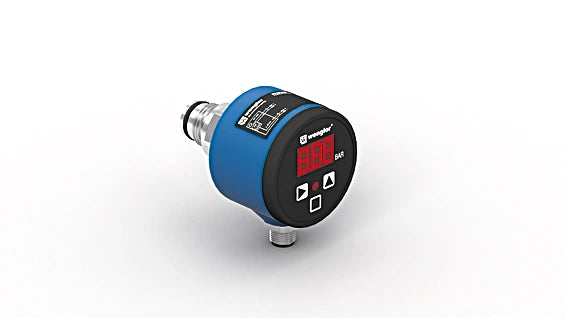

FFAP088 - UniBar Pressure Sensor, -1 to 600 Bar with Display

SKU: SKU: FFAP088 Download PDF

Variant:

FFAP088 - UniBar Pressure Sensor, -1 to 600 Bar with Display

Now $678.00

~~BEFORE $0.00~~ Now $678.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, designed for accurate measurement of relative pressure in closed systems across various mediums, with a range extending from -1 to 600 bar These sensors are user-friendly, equipped with an integrated display for easy monitoring The prominent status indicator allows for quick identification of sensors that may need maintenance, streamlining the upkeep process.

Please note, this product is no longer available.

Features and Benefits:

•Simple operation via the display.

•Piggable with flush mounting.

•Space-saving process connection thanks to small pressure membrane.

•Highly visible output indicator.

Specifications:

Measuring Range	0 ... 10 bar
Measurement Type	relative
Maximum overload pressure	20 bar
Bursting pressure	40 bar
Setting Range	4 ... 100 %
Medium	Liquids, gases
Switching Hysteresis	2 %
Measuring error	< ± 0.5 %
Temperature Drift	0.025 %/K
Temperature of medium	-25 ... 80 °C
Ambient temperature	-25 ... 80 °C
EMC	DIN EN 61326-2-3
Shock resistance per DIN IEC 68-2-27	30 g / 11 ms
Vibration resistance per DIN IEC 60068-2-6	20 g (10...2000 Hz)
Supply Voltage	16 ... 32 V DC
Current Consumption (Ub = 24 V)	< 60 mA
Number of Switching Outputs	1
Response Time	30 ms
Switching Output / Switching Current	< 250 mA
Switching Output Voltage Drop	< 2 V
Analog Output	4...20 mA
Signal source	Pressure
Resolution	10 bit
Current Output Load Resistance	< 500 Ohm
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Protection Class	III
Setting Method	Menu
Housing Material	Plastic, PBT, Plastic, PC
Material Control Panel	Polyester
Material in contact with media	Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
Degree of Protection	IP65 *
Connection	M12 × 1; 4-pin
Process Connection	G 1/2"
MTTFd (EN ISO 13849-1)	1,201.51 a
Output Analog Output	yes
PNP NO	yes
Adjustable parameters Circuit	NC, NC/NO, NO
Selectable measurement range	Switching point
