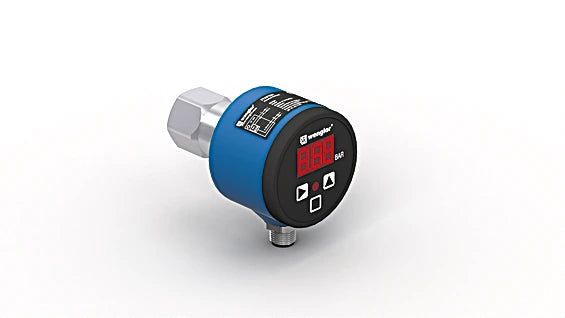

FFAP008 - UniBar Pressure Sensor with Integrated Display, 0-600 Bar Range

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise pressure monitoring with the UniBar pressure sensors, capable of measuring relative pressure in closed systems across a range of -1 to 600 bar These sensors are user-friendly, featuring an integrated display that allows for effortless operation The bright output indicator simplifies the task of locating sensors for any necessary maintenance Key Features: - Easy operation with a built-in display - Clear switching status for quick identification - Measuring range: -0.

25 to 0 bar (relative measurement) - Maximum overload pressure: 1 bar - Bursting pressure: 15 bar - Adjustable setting range: 4 to 100% - Compatible with liquids and gases - Switching hysteresis: 2% - Measurement accuracy: ± 05% - Temperature drift: 0025%/K Operating Conditions: - Suitable medium temperature: -25 to 80 °C - Ambient temperature: -25 to 80 °C - Complies with EMC standards (DIN EN 61326-2-3) - Shock resistance: 30 g (11 ms, per DIN IEC 68-2-27) - Vibration resistance: 20 g (10 to 2000 Hz, per DIN IEC 60068-2-6) Electrical Specifications: - Supply voltage: 16 to 32 V DC - Current consumption: < 60 mA (at 24 V) - Number of switching outputs: 1 - Response time: 30 ms - Maximum switching output current: < 250 mA - Analog output: 4 to 20 mA - Resolution: 10 bit - Short circuit and reverse polarity protection included - Protection class: III Mechanical Characteristics: - Settings configured via a user-friendly menu - Housing materials: PBT plastic, PC plastic - Control panel: polyester - Media contact materials: V4A stainless steel (1.

4404/316L and 14435/316L), FKM rubber - Degree of protection: IP65* - Connection: M12 × 1; 4-pin and G 1/2" process connection The UniBar pressure sensors combine functionality and durability, making them an indispensable tool for various applications.

Features and Benefits:

•Simple operation via the display.

•Highly visible output indicator.

•Sensor-specific data.

•Supports liquids and gases.

Specifications:
