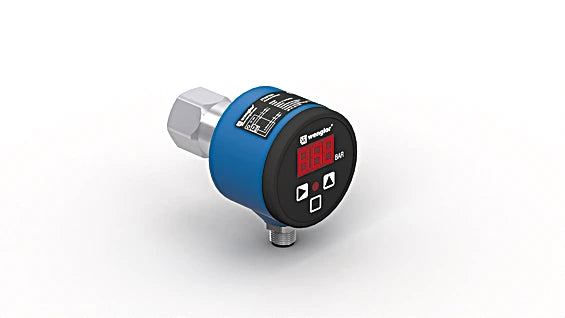

FFAP006 - UniBar Pressure Sensor with Integrated Display, Measures -1 to 600 Bar

FFAP006 - UniBar Pressure Sensor with Integrated Display, Measures -1 to 600 Bar

SKU: FFAP006 Download PDF

Variant:
  • FFAP006 - UniBar Pressure Sensor with Integrated Display, Measures -1 to 600 Bar
Now $678.00
BEFORE   $0.00 Now $678.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise pressure monitoring with the UniBar pressure sensors, capable of measuring relative pressure up to 600 bar in closed systems These sensors come equipped with an integrated display for effortless usability The eye-catching status indicator allows for quick identification of any sensors that may require maintenance With straightforward operation via the display and clear output indicators, managing and maintaining these sensors is simple and efficient.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

    •Measurement of relative pressure in closed systems of various mediums.

Specifications:

 Measuring Range -0.5 ... 0 bar
 Measurement Type relative
 Maximum overload pressure 1 bar
 Bursting pressure 1.5 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Switching Output < 250 mA
 Analog Output 4...20 mA
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Rubber, FKM, Ceramic
 Degree of Protection IP65
 Connection M12 × 1; 4-pin
 Process Connection G 1/2"
 MTTFd 1,201.51 a
 Output Analog Output yes
 PNP NO yes
