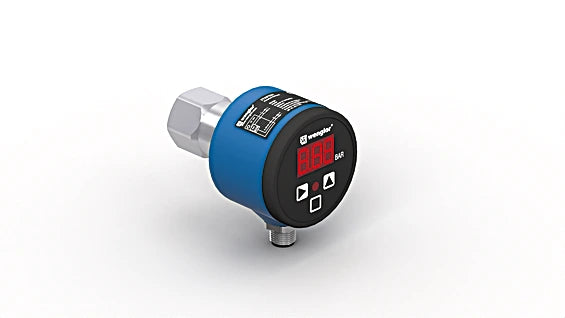

FFAP005 - UniBar Pressure Sensor with Display, Range -1 to 600 Bar

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, expertly engineered to monitor relative pressure within closed systems across a range of -1 to 600 bar These sensors come with an integrated display that ensures user-friendly operation A prominent switching status indicator simplifies the identification of sensors needing attention during maintenance, making your workflow more efficient.

Features and Benefits:

•Simple operation via the display.

•Highly visible output indicator.

•Sensor-specific data.

•Measuring Range -1 ... 0 bar.

•Measurement Type relative.

•Maximum overload pressure 5 bar.

•Bursting pressure 6 bar.

•Setting Range 4 ... 100 %.

•Medium Liquids, gases.

•Switching Hysteresis 2 %.

•Measuring error < ± 0.5 %.

•Temperature Drift 0.025 %/K.

•Environmental conditions Temperature of medium -25 ... 80 °C.

•Ambient temperature -25 ... 80 °C.

•EMC DIN EN 61326-2-3.

•Shock resistance per DIN IEC 68-2-27 30 g / 11 ms.

•Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz).

•Setting Method Menu.

•Housing Material Plastic, PBT.

•Material Control Panel Polyester.

•Material in contact with media Stainless steel, V4A (1.4404 / 316L) and Stainless steel, V4A (1.4435/316L) and Rubber, FKM.

•Degree of Protection IP65 *.

•Connection M12 × 1; 4-pin.

•Process Connection G 1/8".

•Weight 450 g.

Specifications:
