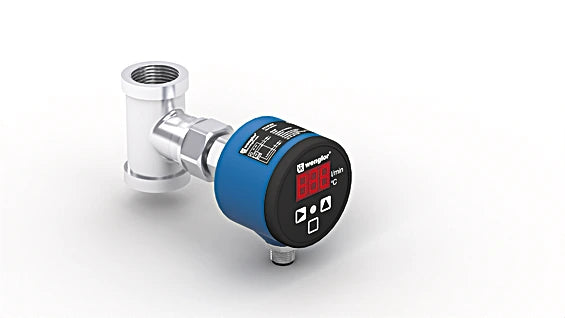

FFAF210 - Wenglor Flow Sensor with Integrated Display for Easy Operation

FFAF210 - Wenglor Flow Sensor with Integrated Display for Easy Operation

SKU: FFAF210 Download PDF

Variant:
  • FFAF210 - Wenglor Flow Sensor with Integrated Display for Easy Operation
Now $627.00
BEFORE   $0.00 Now $627.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The wenglor UniFlow flow sensors are designed to accurately gauge the flow rates of both aqueous and oily substances within closed piping systems Featuring an intuitive integrated display, these sensors offer easy operation The bright status indicator allows for quick identification of specific sensors during maintenance, streamlining the process for users.

Features and Benefits:

    •Measurement independent of flow direction.

    •Highest precision of its class.

    •Display can be switched between flow and medium temperature.

    •Temperature of the medium: 0 ... 100° C (140° C for 24 hours without current measurement).

    •Selectable measuring range.

Specifications:

 Measurement Range 4 ... 60 l/min
 Setting Range 4 ... 60 l/min
 Medium Water
 Measuring error (total) 2 %
 MTTFd (EN ISO 13849-1) 1,341.35 a
 Switching Hysteresis 5 %
 Temperature gradient 30 K
 Response time in case of temperature jump 10 s
 Temperature of medium 0 ... 100 °C
 Temperature of the medium, short-term 140 °C
 Ambient temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 2
 Switching Output A1 Flow
 Switching Output A2 Temp
 Response Time 1 ... 5 s
 Switching Output/ Switching Current < 250 mA
 Switching Output Voltage Drop < 2 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 4-pin
 Process Connection Sealing cone M18 × 1,5
 Process Connection Length (PCL) 64 mm
 Probe Length (PL) 44 mm
 Output PNP NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
