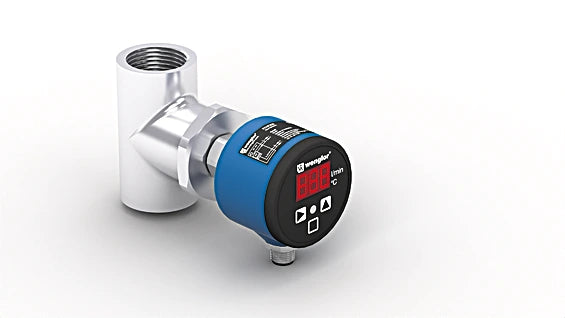

FFAF208 - UniFlow Flow Sensor for Aqueous and Oily Media

FFAF208 - UniFlow Flow Sensor for Aqueous and Oily Media

SKU: FFAF208 Download PDF

Variant:
  • FFAF208 - UniFlow Flow Sensor for Aqueous and Oily Media
Now $643.00
BEFORE   $0.00 Now $643.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the Wenglor UniFlow flow sensors, expertly designed to monitor the flow rates of both aqueous and oily fluids within closed piping systems Featuring an intuitive integrated display, these sensors facilitate easy operation and quick maintenance The prominent status indicator allows users to swiftly identify which sensors require attention Although this model has been discontinued, it remains available for order.

Features and Benefits:

    •Measurement independent of flow direction.

    •Highest precision of its class.

    •Display can be switched between flow and medium temperature.

    •Temperature of the medium: 0 ... 100° C (140° C for 24 hours without current measurement).

    •Selectable measuring range.

Specifications:

 Measuring Range 6 ... 100 l/min
 Setting Range 4 ... 100 l/min
 Medium Water
 Measuring error (total) 2 %
 MTTFd (EN ISO 13849-1) 1,194.55 a
 Switching Hysteresis 5 %
 Temperature gradient 30 K
 Response time in case of temperature jump 10 s
 Environmental conditions Temperature of medium: 0 ... 100 °C
 Temperature of the medium, short-term 140 °C
 Ambient temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 EMC DIN EN 60947-5-9
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Electrical Data Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 1
 Analog Output 4...20 mA
 Signal source Flow
 Response Time 1 ... 5 s
 Switching Output / Switching Current < 250 mA
 Switching Output Voltage Drop < 2 V
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Mechanical Data Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 4-pin
 Process Connection Sealing cone M18 × 1,5
 Process Connection Length (PCL) 64 mm
 Probe Length (PL) 44 mm
