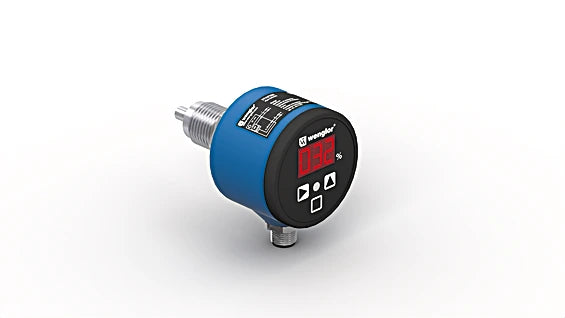

FFAF187 - UniFlow Flow Sensor for Aqueous & Oily Media, Easy Display

FFAF187 - UniFlow Flow Sensor for Aqueous & Oily Media, Easy Display

SKU: FFAF187 Download PDF

Variant:
  • FFAF187 - UniFlow Flow Sensor for Aqueous & Oily Media, Easy Display
Now $511.00
BEFORE   $0.00 Now $511.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise flow measurement with the wenglor UniFlow flow sensors, specifically engineered for monitoring the flow rate of both aqueous and oily fluids within closed piping systems These sensors feature an intuitive integrated display that makes it easy to spot any units that require maintenance, thanks to their clear and visible switching status indicator.

Features and Benefits:

    •Measurement independent of flow direction.

    •Highest precision of its class.

    •Display can be switched between flow and medium temperature.

    •Temperature of the medium: 0 ... 100° C (140° C for 24 hours without current measurement).

    •Selectable measuring range.

Specifications:

 Temperature of medium 0 ... 100 °C
 Short-term temperature of medium 140 °C
 Ambient temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 1
 Analog Output 4...20 mA
 Response Time 1 ... 5 s
 Protection Class III
 Housing Material Plastic, PBT and PC
 Material in contact with media Stainless steel, V4A (1.4404 / 316L) and FKM
 Degree of Protection IP67
 Connections M12 × 1; 4-pin
 Process Connection G 1/2"
 Process Connection Length (PCL) 47 mm
 Probe Length (PL) 10 mm
 Measuring error (total) 2 %
 MTTFd (EN ISO 13849-1) 1,194.55 a
 Switching Hysteresis 5 %
 Temperature gradient 30 K
 Response time in case of temperature jump 10 s
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
