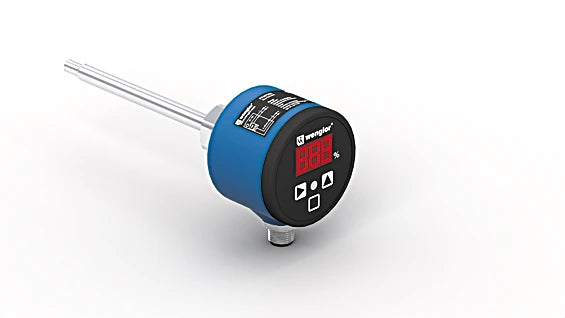

FFAF181 - UniFlow Flow Sensor with Integrated Display for Easy Monitoring

FFAF181 - UniFlow Flow Sensor with Integrated Display for Easy Monitoring

SKU: FFAF181 Download PDF

Variant:
  • FFAF181 - UniFlow Flow Sensor with Integrated Display for Easy Monitoring
Now $632.00
BEFORE   $0.00 Now $632.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The wenglor UniFlow flow sensor is designed for accurately measuring the flow rate of liquids, both aqueous and oily, within closed piping systems Its user-friendly integrated display makes operation straightforward, while the clearly visible switching status indicator helps quickly identify sensors that require maintenance This efficiency enhances overall maintenance processes.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Temperature of the medium: 0 ... 60° C (140° C for 24 hours without current measurement).

Specifications:

 Measuring Range 15 ... 100 cm/s
 Setting Range 20 ... 100 cm/s
 Medium Oil
 Measuring error (total) 2 %
 MTTFd (EN ISO 13849-1) 1,341.35 a
 Switching Hysteresis 5 %
 Temperature gradient 30 K
 Response time in case of temperature jump 10 s
 Temperature of medium 0 ... 60 °C
 Ambient temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 2
 Switching Output A1 Flow
 Switching Output A2 Flow
 Response Time 4 ... 15 s
 Switching Current < 250 mA
 Switching Output Voltage Drop < 2 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Process Connection Sealing cone M18 × 1,5
 Process Connection Length (PCL) 124 mm
 Probe Length (PL) 103.5 mm
 Output PNP NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
 Other parameters 2 switching points
