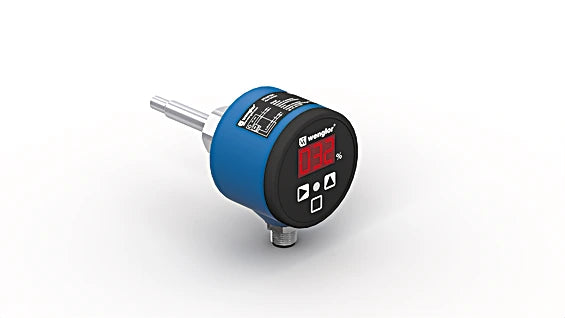

FFAF178 - UniFlow Flow Sensor for Aqueous and Oily Media with Display

FFAF178 - UniFlow Flow Sensor for Aqueous and Oily Media with Display

SKU: FFAF178 Download PDF

Variant:
  • FFAF178 - UniFlow Flow Sensor for Aqueous and Oily Media with Display
Now $572.00
BEFORE   $0.00 Now $572.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable flow measurement with the Wenglor UniFlow flow sensors Specifically designed for monitoring the flow rate of both aqueous and oily substances within closed piping systems, these sensors boast a user-friendly integrated display The prominently displayed switching status simplifies the identification of sensors that require maintenance, ensuring efficient upkeep and performance.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Temperature of the medium: 0 ... 60° C (140° C for 24 hours without current measurement).

Specifications:

 Measuring Range 15 ... 100 cm/s
 Setting Range 20 ... 100 cm/s
 Medium Oil
 Measuring error (total) 2 %
 MTTFd (EN ISO 13849-1) 1,341.35 a
 Switching Hysteresis 5 %
 Temperature gradient 30 K
 Response time in case of temperature jump 10 s
 Temperature of medium 0 ... 60 °C
 Ambient temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 2
 Response Time 4 ... 15 s
 Protection Class III
 Housing Material Plastic, PBT, Plastic, PC
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Process Connection Length (PCL) 64 mm
 Probe Length (PL) 44 mm
