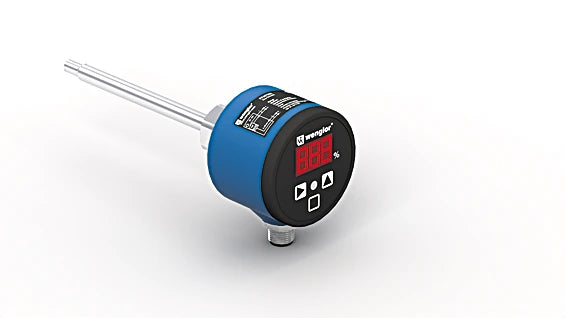

FFAF177 - UniFlow Flow Sensor for Aqueous & Oily Media Measurement

FFAF177 - UniFlow Flow Sensor for Aqueous & Oily Media Measurement

SKU: FFAF177 Download PDF

Variant:
  • FFAF177 - UniFlow Flow Sensor for Aqueous & Oily Media Measurement
Now $602.00
BEFORE   $0.00 Now $602.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your flow measurement tasks with the Flow Sensorwenglor UniFlow, designed specifically to monitor the flow rate of both aqueous and oily substances within sealed piping systems Operating this sensor is a breeze thanks to its built-in display, which clearly shows the switching status This feature facilitates quick identification of sensors that may require maintenance, making upkeep efficient and straightforward.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Temperature of the medium: 0 ... 100° C (140° C for 24 hours without current measurement).

Specifications:

 Measuring range 1 10 ... 150 cm/s
 Setting range 1 15 ... 150 cm/s
 Measuring range 2 20 ... 300 cm/s
 Setting range 2 30 ... 300 cm/s
 Medium Water
 Measuring error (total) 2 %
 MTTFd (EN ISO 13849-1) 1,341.35 a
 Switching Hysteresis 5 %
 Temperature gradient 30 K
 Response time in case of temperature jump 10 s
 Temperature of medium 0 ... 100 °C
 Temperature of the medium, short-term 140 °C
 Ambient temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 EMC DIN EN 60947-5-9
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 2
 Switching Output A1 Flow
 Switching Output A2 Temp
 Response Time 1 ... 5 s
 Switching Current < 250 mA
 Voltage Drop < 2 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 4-pin
 Process Connection Sealing cone M18 × 1,5
 Process Connection Length (PCL) 124 mm
 Probe Length (PL) 103.5 mm
