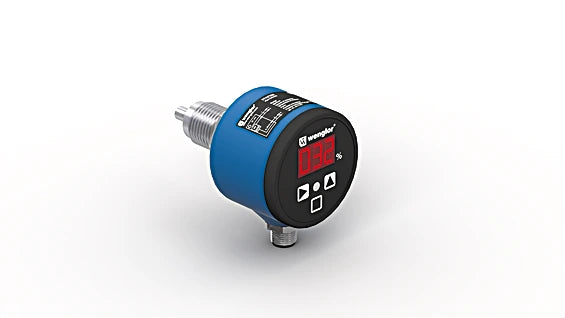

FFAF113 - UniFlow Flow Sensor for Oil, 15-100 cm/s, Integrated Display

SKU: SKU: FFAF113 Download PDF

Select a Variant:

FFAF113 - UniFlow Flow Sensor for Oil, 15-100 cm/s, Integrated Display

SET THE QTY:

Now $527.00 Web pricing policy

~~BEFORE $0.00~~ Now $527.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience precise monitoring with the wenglor UniFlow flow sensors, expertly engineered to measure the flow rates of both aqueous and oily liquids in closed piping systems Featuring an intuitive integrated display, these sensors make it easy to visualize the switching status, allowing for quick identification of any sensors requiring maintenance With a measuring range of 15 to 100 cm/s and an adjustable setting range from 20 to 100 cm/s, they boast a total measurement error of just 2%.

Built to endure a temperature span of 0 to 60°C, these sensors can also handle temperatures up to 140°C for short durations without current measurement, ensuring reliable performance across various industrial settings.

Features and Benefits:

•Simple operation via the display.

•Measurement independent of flow direction.

•Installation in any position.

•Highest precision of its class.

Specifications:

Measuring Range	15 ... 100 cm/s
Setting Range	20 ... 100 cm/s
Medium	Oil
Measuring error (total)	2 %
MTTFd (EN ISO 13849-1)	766.91 a
Switching Hysteresis	5 %
Temperature gradient	30 K
Response time in case of temperature jump	10 s
Temperature of medium	0 ... 60 °C
Ambient temperature	-20 ... 70 °C
Pressure Resistance	60 bar
EMC	DIN EN 60947-5-9
Shock resistance per DIN IEC 68-2-27	30 g / 11 ms
Vibration resistance per DIN IEC 60068-2-6	20 g (10...2000 Hz)
Supply Voltage	16 ... 32 V DC
Current Consumption (Ub = 24 V)	60 mA
Number of Switching Outputs	1
Analog Output	0...10 V
Signal source	Temperature
Response Time	4 ... 15 s
Relay Output / Switching Current (24 VDC)	< 1 A
Load Current Voltage Output	< 20 mA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Protection Class	III
Setting Method	Menu
Housing Material	Plastic, PBT, Plastic, PC
Material Control Panel	Polyester
Material in contact with media	Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
Degree of Protection	IP67
Connection	M12 × 1; 5-pin
Process Connection	G 1/2"
Process Connection Length (PCL)	47 mm
Probe Length (PL)	10 mm
