FFAF111 - Easy-Read Flow Sensor for Aqueous & Oily Media

FFAF111 - Easy-Read Flow Sensor for Aqueous & Oily Media

SKU: FFAF111 Download PDF

Variant:
  • FFAF111 - Easy-Read Flow Sensor for Aqueous & Oily Media
Now $616.00
BEFORE   $0.00 Now $616.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

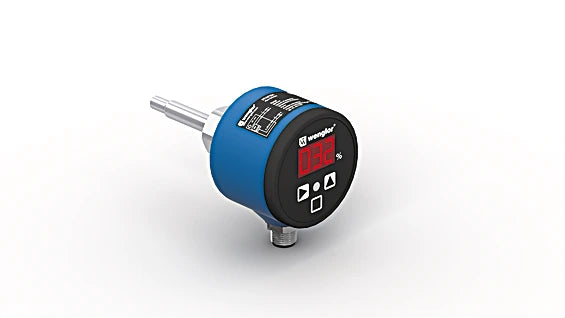

Introducing the UniFlow Flow Sensor by Wenglor, expertly designed to accurately gauge the flow rate of both aqueous and oily substances within closed piping systems This user-friendly sensor features a built-in display that allows for effortless operation Its highly visible status indicator facilitates quick identification of any sensors needing attention during maintenance tasks Perfect for ensuring optimal performance in a variety of applications.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Temperature of the medium: 0 ... 60° C (140° C for 24 hours without current measurement).

Specifications:

 Measuring Range 15 ... 100 cm/s
 Setting Range 20 ... 100 cm/s
 Medium Oil
 Measuring error (total) 2 %
 MTTFd (EN ISO 13849-1) 766.91 a
 Switching Hysteresis 5 %
 Temperature gradient 30 K
 Response time in case of temperature jump 10 s
 Temperature of medium 0 ... 60 °C
 Ambient temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 EMC DIN EN 60947-5-9
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 1
 Analog Output 4...20 mA
 Signal source Temperature
 Response Time 4 ... 15 s
 Relay Output / Switching Current (24 VDC) < 1 A
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT; Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L); Stainless steel, V4A (1.4435/316L); Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 5-pin
 Process Connection Sealing cone M18 × 1,5
 Process Connection Length (PCL) 64 mm
 Probe Length (PL) 44 mm
 Analog output temperature yes
 PNP NO yes
 Adjustable parameters Circuit NC; NC/NO; NO
 Other parameters Switching point; Selectable measurement range
