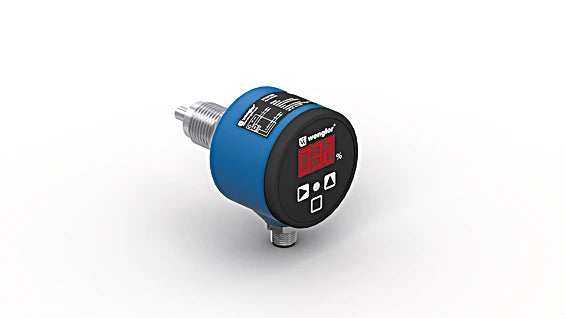

FFAF109 - Easy-to-Use Flow Sensor for Aqueous and Oily Media

FFAF109 - Easy-to-Use Flow Sensor for Aqueous and Oily Media

SKU: FFAF109 Download PDF

Variant:
  • FFAF109 - Easy-to-Use Flow Sensor for Aqueous and Oily Media
Now $572.00
BEFORE   $0.00 Now $572.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing wenglor UniFlow flow sensors, the ideal solution for measuring flow rates of both aqueous and oily substances within closed piping systems These sensors are designed for user-friendly operation, featuring a built-in display that simplifies monitoring The prominently visible switching status indicator allows for quick identification of sensor issues, streamlining maintenance efforts effectively.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Temperature of the medium: 0 ... 60° C (140° C for 24 hours without current measurement).

Specifications:

 Measuring Range 15 ... 100 cm/s
 Setting Range 20 ... 100 cm/s
 Medium Oil
 Measuring error (total) 2 %
 MTTFd (EN ISO 13849-1) 766.91 a
 Switching Hysteresis 5 %
 Temperature gradient 30 K
 Response time in case of temperature jump 10 s
 Temperature of medium 0 ... 60 °C
 Ambient temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 EMC DIN EN 60947-5-9
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 1
 Analog Output 4...20 mA
 Signal source Temperature
 Response Time 4 ... 15 s
 Relay Output / Switching Current (24 VDC) < 1 A
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 5-pin
 Process Connection G 1/2"
 Process Connection Length (PCL) 47 mm
 Probe Length (PL) 10 mm
 Analog output temperature yes
 PNP NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
 Other parameters Switching point, Selectable measurement range
