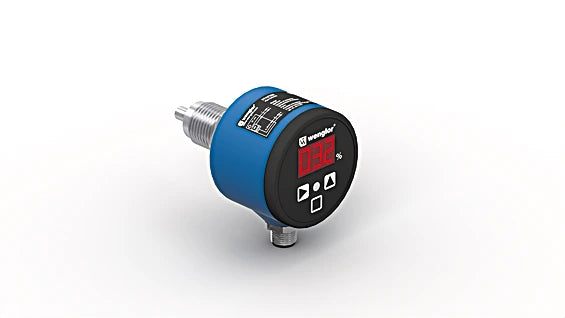

FFAF093 - UniFlow Flow Sensor with Integrated Display for Aqueous/Oily Media

FFAF093 - UniFlow Flow Sensor with Integrated Display for Aqueous/Oily Media

SKU: FFAF093 Download PDF

Variant:
  • FFAF093 - UniFlow Flow Sensor with Integrated Display for Aqueous/Oily Media
Now $572.00
BEFORE   $0.00 Now $572.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing UniFlow flow sensors, expertly designed to monitor the flow rate of both aqueous and oily substances in enclosed piping systems These sensors are user-friendly, featuring an integrated display that showcases the operational status, allowing for quick identification and maintenance of individual units Key highlights include versatile installation options in any position, accurate measurements regardless of the flow direction, and a high level of precision within its category.

Additionally, the display conveniently toggles between measuring flow and medium temperature, ensuring comprehensive functionality for your monitoring needs.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Display can be switched between flow and medium temperature.

Specifications:

 Measuring Range 15 ... 100 cm/s
 Setting Range 20 ... 100 cm/s
 Medium Oil
 Measuring error (total) 2 %
 MTTFd (EN ISO 13849-1) 766.91 a
 Switching Hysteresis 5 %
 Temperature gradient 30 K
 Response time in case of temperature jump 10 s
 Temperature of medium 0 ... 60 °C
 Ambient temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 EMC DIN EN 60947-5-9
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 1
 Analog Output 4...20 mA
 Signal source Flow
 Response Time 4 ... 15 s
 Relay Output / Switching Current (24 VDC) < 1 A
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L)
 Degree of Protection IP67 *
 Connection M12 × 1; 5-pin
 Process Connection G 1/2"
 Process Connection Length (PCL) 47 mm
 Probe Length (PL) 10 mm
 Output Analog output flow: yes
 PNP NO yes
 Adjustable parameters Circuit NC
 NC/NO NO
