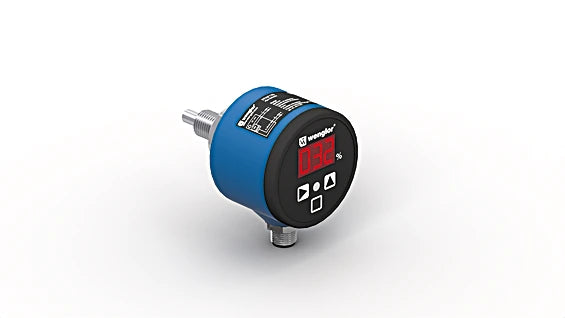

FFAF050 - UniFlow Flow Sensor with Integrated Display for Aqueous and Oily Media

SKU: SKU: FFAF050 Download PDF

Select a Variant:

FFAF050 - UniFlow Flow Sensor with Integrated Display for Aqueous and Oily Media

SET THE QTY:

Now $496.00 Web pricing policy

~~BEFORE $0.00~~ Now $496.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the Wenglor UniFlow flow sensors, engineered for accurate measurement of flow rates in both water-based and oily substances within closed piping systems Featuring a user-friendly integrated display, these sensors make it easy to monitor the operational status, allowing for quick detection of maintenance needs The UniFlow sensor guarantees accurate readings regardless of flow direction and can be installed in any position.

Additionally, the display has the capability to alternate between flow rate and medium temperature, offering versatility for various applications.

Features and Benefits:

•Simple operation via the display.

•Measurement independent of flow direction.

•Installation in any position.

•Highest precision of its class.

•Display can be switched between flow and medium temperature.

•Temperature of the medium: 0 ... 100° C (140° C for short durations).

Specifications:

Measuring range	10 ... 300 cm/s
Setting range 1	10 ... 150 cm/s
Measuring range 2	15 ... 150 cm/s
Setting range 2	20 ... 300 cm/s
Medium	Water
Measuring error (total)	2 %
MTTFd (EN ISO 13849-1)	766.91 a
Switching Hysteresis	5 %
Temperature gradient	30 K
Response time in case of temperature jump	10 s
Temperature of medium	0 ... 100 °C
Ambient temperature	-20 ... 70 °C
Pressure Resistance	60 bar
Electrical Data	{'Supply Voltage': '16 ... 32 V DC', 'Current Consumption (Ub = 24 V)': '60 mA', 'Number of Switching Outputs': '1', 'Analog Output': '0...10 V', 'Signal source': 'Temperature', 'Response Time': '1 ... 5 s', 'Relay Output / Switching Current (24 VDC)': '< 1 A', 'Load Current Voltage Output': '< 20 mA', 'Short Circuit Protection': 'yes', 'Reverse Polarity Protection': 'yes', 'Protection Class': 'III'}
Mechanical Data	{'Setting Method': 'Menu', 'Housing Material': 'Plastic, PBT; Plastic, PC', 'Material Control Panel': 'Polyester', 'Material in contact with media': 'Stainless steel, V4A (1.4404 / 316L); Stainless steel, V4A (1.4435/316L); Rubber, FKM', 'Degree of Protection': 'IP67 *', 'Connection': 'M12 × 1; 5-pin', 'Process Connection': 'G 1/4"', 'Process Connection Length (PCL)': '42 mm', 'Probe Length (PL)': '10 mm'}
