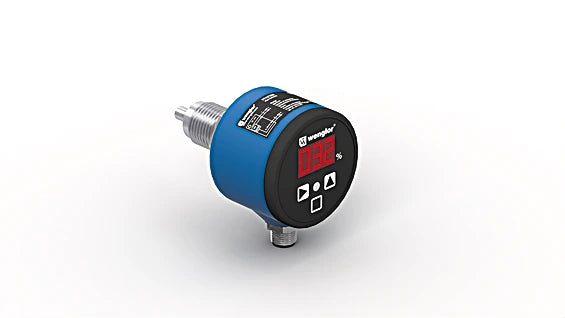

FFAF049 - UniFlow Flow Sensor for Aqueous & Oily Media Monitoring

FFAF049 - UniFlow Flow Sensor for Aqueous & Oily Media Monitoring

SKU: FFAF049 Download PDF

Variant:
  • FFAF049 - UniFlow Flow Sensor for Aqueous & Oily Media Monitoring
Now $496.00
BEFORE   $0.00 Now $496.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniFlow flow sensors by Sensorwenglor, engineered to accurately measure the flow rate of both aqueous and oily substances within closed piping systems These user-friendly sensors come equipped with an integrated display for effortless operation Their bright switching status indicator allows for quick identification of sensors requiring maintenance, ensuring streamlined upkeep and efficiency.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Display can be switched between flow and medium temperature.

    •Flow measurement in closed piping systems for aqueous and oily media.

Specifications:

 Temperature of medium 0 ... 100° C (140° C for 24 hours without current measurement)
 Selectable measuring range 10 ... 300 cm/s
 Measuring error (total) 2 %
 MTTFd (EN ISO 13849-1) 766.91 a
 Switching Hysteresis 5 %
 Temperature gradient 30 K
 Response time in case of temperature jump 10 s
 Ambient temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 1
 Analog Output 0...10 V
 Relay Output / Switching Current (24 VDC) < 1 A
 Load Current Voltage Output < 20 mA
 Setting Method Menu
 Housing Material Plastic, PBT, PC
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 5-pin
 Process Connection G 1/2"
 Process Connection Length (PCL) 47 mm
 Probe Length (PL) 10 mm
