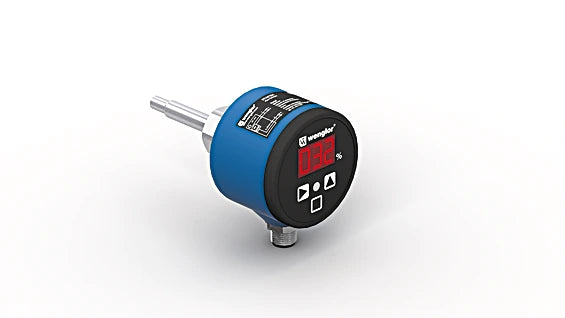

FFAF047 - UniFlow Flow Sensor for Aqueous & Oily Media, 10-300 cm/s

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure precise flow measurement with the Wenglor UniFlow flow sensors, designed to assess both aqueous and oily media in closed piping systems Featuring an intuitive integrated display, these sensors offer effortless operation A prominent switching status display allows for quick identification of sensors that may need maintenance, saving you time and effort The UniFlow sensors are versatile, allowing for installation in any orientation and providing reliable measurements regardless of flow direction.

They boast exceptional accuracy, with a display option that toggles between flow rates and medium temperature Selectable measuring ranges span from 10 to 300 cm/s, and they can handle medium temperatures up to 100°C, peaking at 140°C for short durations With a mean time to failure (MTTFd) of 76691 a (as per EN ISO 13849-1) and a minimal measuring error of just 2%, these sensors are built to withstand various environmental challenges.

Operating efficiently in temperatures from -20°C to 70°C, they can also tolerate pressures up to 60 bar, making them a robust choice for your flow measurement needs.

Features and Benefits:

•Simple operation via the display.

•Measurement independent of flow direction.

•Installation in any position.

•Highest precision of its class.

•Display can be switched between flow and medium temperature.

•Temperature of the medium can reach up to 140°C for short periods.

•Selectable measuring range for flexibility.

Specifications:
