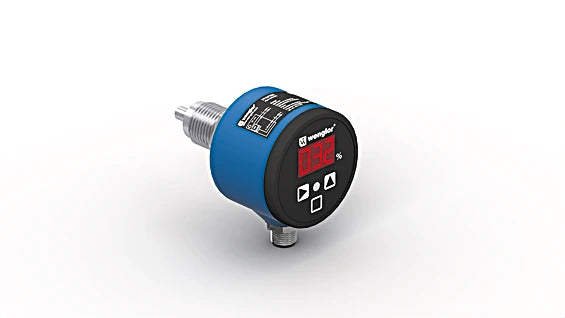

FFAF045 - Easy-to-Use UniFlow Flow Sensor for Aqueous & Oily Media

FFAF045 - Easy-to-Use UniFlow Flow Sensor for Aqueous & Oily Media

SKU: SKU: FFAF045 Download PDF

Variant:
  • FFAF045 - Easy-to-Use UniFlow Flow Sensor for Aqueous & Oily Media
Regular price Now $541.00
Regular price BEFORE   $0.00 Sale price Now $541.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Monitor the flow of liquids effortlessly with the Wenglor UniFlow flow sensors, specifically designed to assess the flow rate of both aqueous and oily media within closed piping systems Featuring an integrated display for user-friendly operation, these sensors make it simple to check the flow status at a glance The prominent switching status indicator assists in quickly identifying any sensors that require maintenance, enhancing overall efficiency in your system.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Display can be switched between flow and medium temperature.

Specifications:

 Temperature of Medium 0 ... 100° C (140° C for 24 hours without current measurement)
 Sensor-specific Data
 Selectable Measuring Range 10 ... 300 cm/s
 Measuring Range 1 10 ... 150 cm/s
 Setting Range 1 15 ... 150 cm/s
 Measuring Range 2 20 ... 300 cm/s
 Setting Range 2 30 ... 300 cm/s
 Medium Water
 Measuring Error (Total) 2 %
 MTTFd (EN ISO 13849-1) 766.91 a
 Switching Hysteresis 5 %
 Temperature Gradient 30 K
 Response Time (in case of temperature jump) 10 s
 Temperature of Medium (Short-term) 140 °C
 Ambient Temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 EMC DIN EN 60947-5-9
 Shock Resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration Resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 1
 Analog Output 4...20 mA
 Signal Source Temperature
 Response Time 1 ... 5 s
 Relay Output/Switching Current (24 VDC) < 1 A
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT / Plastic, PC
 Material Control Panel Polyester
 Material in Contact with Media Stainless steel, V4A (1.4404 / 316L) / Stainless steel, V4A (1.4435/316L) / Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 5-pin
 Process Connection G 1/2"
 Process Connection Length (PCL) 47 mm
 Probe Length (PL) 10 mm
