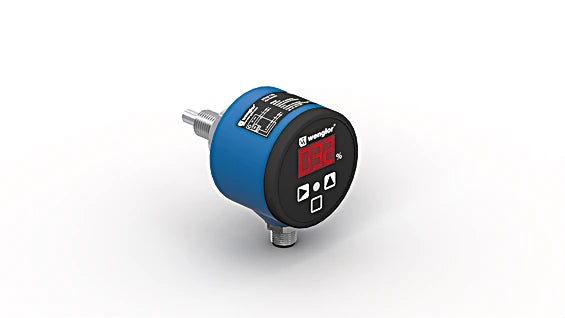

FFAF042 - UniFlow Flow Sensor for Aqueous & Oily Fluids with Display

FFAF042 - UniFlow Flow Sensor for Aqueous & Oily Fluids with Display

SKU: FFAF042 Download PDF

Variant:
  • FFAF042 - UniFlow Flow Sensor for Aqueous & Oily Fluids with Display
Now $541.00
BEFORE   $0.00 Now $541.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise monitoring with UniFlow flow sensors, expertly crafted to gauge the flow rate of both aqueous and oily substances within sealed piping systems These sensors are equipped with a user-friendly integrated display that simplifies operation The clear switching status indicator allows for swift recognition of any sensors that may need maintenance, ensuring uninterrupted functionality.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Display can be switched between flow and medium temperature.

    •Medium temperature: 0 ... 100° C (140° C for 24 hours without current measurement).

Specifications:

 Measuring Range 1 10 ... 150 cm/s
 Setting Range 1 15 ... 150 cm/s
 Measuring Range 2 20 ... 300 cm/s
 Setting Range 2 30 ... 300 cm/s
 Medium Water
 Measuring Error (total) 2 %
 MTTFd (EN ISO 13849-1) 1,194.55 a
 Switching Hysteresis 5 %
 Temperature Gradient 30 K
 Response Time (temperature jump) 10 s
 Temperature of medium 0 ... 100 °C
 Short-term medium temperature 140 °C
 Ambient Temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 1
 Analog Output 0...10 V
 Response Time 1 ... 5 s
 Switching Current < 250 mA
 Voltage Drop < 2 V
 Load Current Voltage Output < 20 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 4-pin
 Process Connection G 1/4"
 Process Connection Length (PCL) 42 mm
 Probe Length (PL) 10 mm
