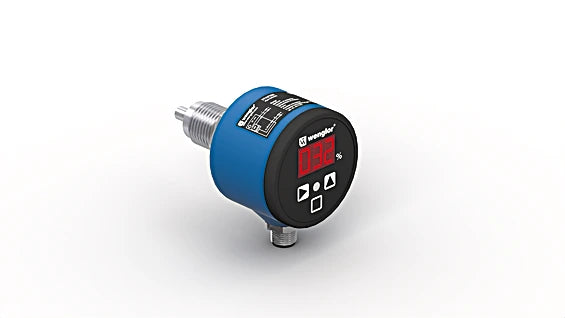

FFAF041 - UniFlow Flow Sensor for Aqueous & Oily Media Measurement

FFAF041 - UniFlow Flow Sensor for Aqueous & Oily Media Measurement

SKU: FFAF041 Download PDF

Variant:
  • FFAF041 - UniFlow Flow Sensor for Aqueous & Oily Media Measurement
Now $541.00
BEFORE   $0.00 Now $541.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the wenglor UniFlow flow sensors, specifically engineered to measure the flow rate of both aqueous and oily substances within closed piping systems These sensors feature an intuitive built-in display, making operation simple and straightforward With a clear indicator for switching statuses, you can easily identify and locate sensors in need of maintenance, streamlining your upkeep efforts.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Display can be switched between flow and medium temperature.

    •Measurement of flow rate in aqueous and oily media in closed piping systems..

Specifications:

 Measurement Range 1 10 ... 150 cm/s
 Setting Range 1 15 ... 150 cm/s
 Measuring Range 2 20 ... 200 cm/s
 Setting Range 2 30 ... 300 cm/s
 Medium Water
 Measuring Error (Total) 2 %
 MTTFd (EN ISO 13849-1) 1,194.55 a
 Switching Hysteresis 5 %
 Temperature Gradient 30 K
 Response Time in case of temperature jump 10 s
 Temperature of Medium 0 ... 100 °C
 Temperature of the Medium, Short-term 140 °C
 Ambient Temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 1
 Analog Output 0...10 V
 Switching Output/Switching Current < 250 mA
 Switching Output Voltage Drop < 2 V
 Load Current Voltage Output < 20 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Process Connection G 1/2"
 Process Connection Length (PCL) 47 mm
 Probe Length (PL) 10 mm
