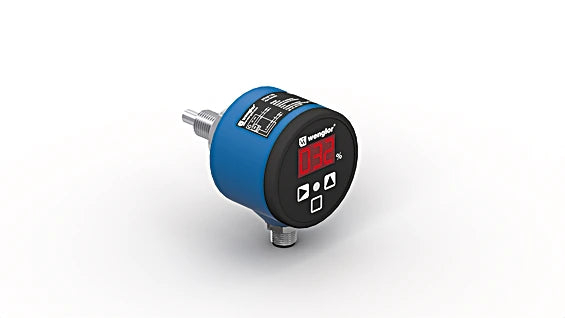

FFAF026 - UniFlow Flow Sensor for Aqueous & Oily Media

FFAF026 - UniFlow Flow Sensor for Aqueous & Oily Media

SKU: FFAF026 Download PDF

Variant:
  • FFAF026 - UniFlow Flow Sensor for Aqueous & Oily Media
Now $496.00
BEFORE   $0.00 Now $496.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the wenglor UniFlow flow sensor, a reliable solution for measuring the flow rates of both aqueous and oily substances within closed piping systems This user-friendly device features an integrated display that simplifies operation Additionally, its clear switching status indicator allows for quick identification of sensors that require maintenance, making upkeep more efficient.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Display can be switched between flow and medium temperature.

    •Temperature of the medium: 0 ... 100° C (140° C for 24 hours without current measurement).

Specifications:

 Measuring range: 10 ... 300 cm/s
 Setting range 1: 10 ... 150 cm/s
 Measuring range 1: 15 ... 150 cm/s
 Setting range 2: 20 ... 300 cm/s
 Measuring range 2: 30 ... 300 cm/s
 Medium: Water
 Measuring error (total): 2 %
 MTTFd (EN ISO 13849-1): 1,194.55 a
 Switching Hysteresis: 5 %
 Temperature gradient: 30 K
 Response time in case of temperature jump: 10 s
 Temperature of medium: 0 ... 100 °C
 Temperature of the medium, short-term: 140 °C
 Ambient temperature: -20 ... 70 °C
 Pressure Resistance: 60 bar
 Supply Voltage: 16 ... 32 V DC
 Current Consumption (Ub = 24 V): 60 mA
 Number of Switching Outputs: 1
 Analog Output: 0...10 V
 Signal source: Flow
 Response Time: 1 ... 5 s
 Switching Output/Switching Current: < 250 mA
 Switching Output Voltage Drop: < 2 V
 Load Current Voltage Output: < 20 mA
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Protection Class: III
 Setting Method: Menu
 Housing Material: Plastic, PBT
 Material Control Panel: Polyester
 Material in contact with media: Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection: IP67 *
 Connection: M12 × 1; 4-pin
 Process Connection: G 1/4"
 Process Connection Length (PCL): 42 mm
 Probe Length (PL): 10 mm
