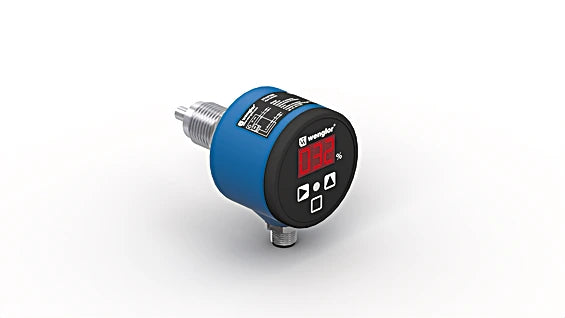

FFAF004 - UniFlow Flow Sensor for Aqueous & Oily Media Measurement

FFAF004 - UniFlow Flow Sensor for Aqueous & Oily Media Measurement

SKU: FFAF004 Download PDF

Variant:
  • FFAF004 - UniFlow Flow Sensor for Aqueous & Oily Media Measurement
Now $376.00
BEFORE   $0.00 Now $376.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniFlow flow sensor by Wenglor, expertly designed to accurately measure the flow rates of both aqueous and oily substances in closed piping systems With a user-friendly integrated display, monitoring has never been easier The prominent switching status indicator allows for swift identification of sensors that require maintenance, enhancing efficiency in your operations.

Features and Benefits:

    •Simple operation via the display.

    •Measurement independent of flow direction.

    •Installation in any position.

    •Highest precision of its class.

    •Temperature of the medium: 0 ... 100° C (140° C for 24 hours without current measurement).

Specifications:

 Measuring Range 15 ... 200 cm/s
 Setting Range 15 ... 200 cm/s
 Medium Water
 Measuring error (total) 2 %
 MTTFd (EN ISO 13849-1) 1,436.42 a
 Switching Hysteresis 5 %
 Temperature gradient 30 K
 Response time in case of temperature jump 10 s
 Temperature of medium 0 ... 100 °C
 Temperature of the medium, short-term 140 °C
 Ambient temperature -20 ... 70 °C
 Pressure Resistance 60 bar
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) 60 mA
 Number of Switching Outputs 1
 Response Time 1 ... 5 s
 Switching Output / Switching Current < 250 mA
 Switching Output Voltage Drop < 2 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Process Connection G 1/2"
 Process Connection Length (PCL) 47 mm
 Probe Length (PL) 10 mm
 Output PNP NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
 Other parameters Switching point
