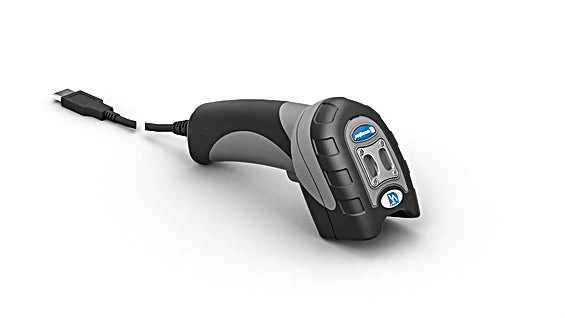

CSHH001 - Versatile Handheld Scanner for 1D/2D Barcodes on Various Materials

CSHH001 - Versatile Handheld Scanner for 1D/2D Barcodes on Various Materials

SKU: SKU: CSHH001 Download PDF

Variant:
  • CSHH001 - Versatile Handheld Scanner for 1D/2D Barcodes on Various Materials
Regular price Now $2,529.00
Regular price BEFORE   $0.00 Sale price Now $2,529.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience the versatility of the wenglor handheld scanners, crafted for on-the-go scanning performance These powerful devices excel in reading a multitude of 1D and 2D barcodes—including needle punched, printed, laser printed, and etched types—across various materials They guarantee impressive results even with low-quality codes Compatible barcode formats encompass a broad spectrum, such as DataMatrix, QR codes (including micro and QR model 1), Aztec code, PDF417, and numerous others like Code 39, Code 128, UPC, EAN, Codabar, and more.

This means you can rely on these scanners for a wide array of applications, making them an essential tool for any mobile user.

Features and Benefits:

    •Excellent reading performance on glossy or curved surfaces.

    •Innovative illumination technology.

    •Rugged housing design.

    •Decoding of DPM codes (e.g. needle-punched, etched or embossed codes).

Specifications:

 Read Range 0 ... 51 mm
 Resolution 1,280 × 960 Pixel
 Light Source Red Light/Blue Light
 Max. Ambient Light 97,000 Lux
 Barcode Printing Contrast > 15 %
 Temperature Range -20 ... 55 °C
 Supply Voltage 5 V DC
 Power Consumption 2,040 mW
 Interface USB
 Acoustic signal yes
 Vibration signal yes
 Visual signal yes
 Housing Material Plastic, PC
 Degree of Protection IP54
 Connection Prewired
 Cable Length 1.8 m
 Shock Resistance > 50 *
 Halogen-free yes
 DPM codes yes
 Output USB Interface yes
