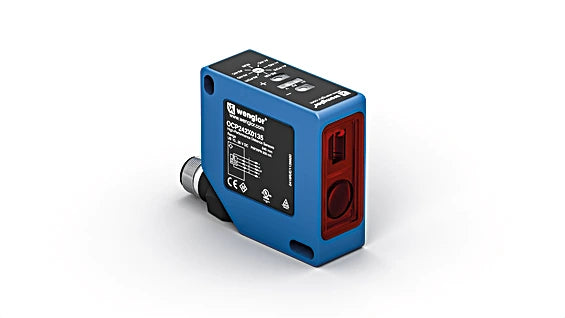

CP24MHT80 - High-Resolution Laser Distance Sensor with Analog Output

CP24MHT80 - High-Resolution Laser Distance Sensor with Analog Output

SKU: CP24MHT80 Download PDF

Variant:
  • CP24MHT80 - High-Resolution Laser Distance Sensor with Analog Output
Now $1,239.00
BEFORE   $0.00 Now $1,239.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise distance measurement with these advanced sensors utilizing high-resolution CMOS line and DSP technology They effectively eliminate discrepancies in material, color, and brightness by relying on angular measurements These sensors also offer versatility with an integrated analog output that can be configured for either 010 V (100 V) voltage or 420 mA (204 mA) current, catering to various application needs.

Features and Benefits:

    •Response time: < 660 µs (speed-mode).

    •High resolution: 20 µm (resolution-mode).

    •Linearity: 0.1 % (resolution-mode).

    •Zoom function.

    •Measured value independent of material, color and brightness.

Specifications:

 Working Range 40 ... 160 mm
 Measuring Range 120 mm
 Resolution 20 µm
 Resolution (Speed-Mode) 30 µm
 Linearity 0.1 %
 Linearity (Speed-Mode) 0.2 %
 Linearity Deviation 120 µm
 Light Source Laser (red)
 Wavelength 660 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 2
 Max. Ambient Light 10,000 Lux
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 80 mA
 Measuring Rate 1,500/s
 Response Time 660 µs
 Temperature Drift < 10 µm/K
 Temperature Range -25 ... 50 °C
 Analog Output yes
 Load Current Voltage Output < 1 mA
 Current Output Load Resistance < 500 Ohm
 Interface RS-232
 Transmission rate 38,400 Bd
 Protection Class III
 MTTFd (EN ISO 13849-1) 713.97 a
 Error Output yes
 RS-232 Interface yes
 Setting Method Teach-In
 Housing Material Plastic, ABS, Plastic, PC
 Optic Cover Plastic, PMMA
 Degree of Protection IP67
 Connection M12 × 1; 8-pin
