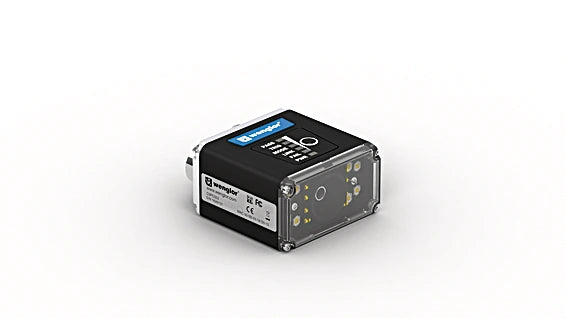

C5PC221 - Versatile 1D/2D Code Scanner for Omnidirectional Reading

C5PC221 - Versatile 1D/2D Code Scanner for Omnidirectional Reading

SKU: SKU: C5PC221 Download PDF

Variant:
  • C5PC221 - Versatile 1D/2D Code Scanner for Omnidirectional Reading
Regular price Now $2,493.00
Regular price BEFORE   $0.00 Sale price Now $2,493.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Effortlessly scan a variety of 1D and 2D codes with our versatile 2D code scanners Capable of omnidirectional scanning, these devices support an extensive range of code types For 1D codes, you can easily work with Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, and Pharmacode Additionally, the scanners efficiently process various 2D codes including DataMatrix ECC 0.

200, PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec Code, GS1 Databar, and Dot code Should you require additional code types, they can be accommodated upon request.

Features and Benefits:

    •Auto-button function.

    •Integrated LED illumination.

    •Integrated code reconstruction.

    •Web link.

    •PROFINET and EtherNet/IP.

    •DPM.

Specifications:

 Barcode Density High density
 Read Range 50 ... 300 mm
 Resolution 2,592 × 1,944 Pixel
 Focal distance 7.7 mm
 Pixel Size 1.75 × 1.75 µm
 Light Source White Light
 Wavelength 617 nm
 Focus Autofocus
 min. Resolution > 0.051 mm
 Temperature Range 0 ... 45 °C
 Atmospheric humidity 5...95%, non-condensing
 Supply Voltage 5 ... 30 V DC
 Current Consumption 180 mA
 Scan Rate 5 scans/sec
 Switching Output Optoisolator
 Number of Switching Outputs 3
 Switching Output / Switching Current 100 mA
 Reverse Polarity Protection yes
 Interface RS-232/Ethernet
 Trigger Input Optoisolator
 Number of Signal Inputs 3
 Setting Method Ethernet
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP65, IP67
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin
 Minimum object distance 50 mm
 Output PNP NO / NC switchable yes
 NPN NO / NC switchable yes
 Ethernet yes
 PROFINET-I/O, CC-B yes
 EtherNet/IP yes
