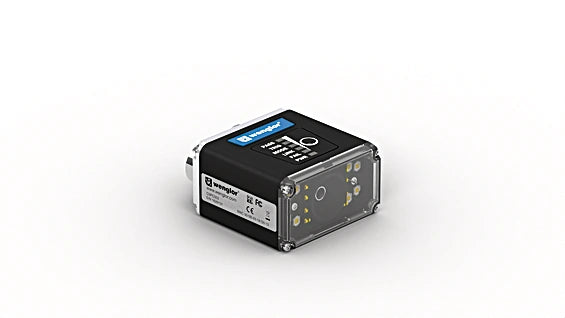

C5PC220 - Omnidirectional 1D/2D Code Scanner for Various Code Types

C5PC220 - Omnidirectional 1D/2D Code Scanner for Various Code Types

SKU: C5PC220 Download PDF

Variant:
  • C5PC220 - Omnidirectional 1D/2D Code Scanner for Various Code Types
Now $2,493.00
BEFORE   $0.00 Now $2,493.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Effortlessly scan a variety of barcodes with this dual-function 2D code scanner, which excels in omnidirectional scanning for both 1D and 2D codes It supports an extensive range of code types including 1D formats like Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, and Pharmacode For 2D codes, it is compatible with DataMatrix ECC levels 0-200, PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, and Dot code.

If you have specific requirements, additional code types can be accommodated upon request.

Features and Benefits:

    •Auto-button function.

    •Integrated LED illumination.

    •Integrated code reconstruction.

    •PROFINET and EtherNet/IP support.

Specifications:

 Barcode Density Standard density
 Read Range 50 ... 300 mm
 Resolution 2,592 × 1,944 Pixel
 Resolution (MP) 5 MP
 Focal distance 5.2 mm
 Pixel Size 1.75 × 1.75 µm
 Light Source White Light
 Wavelength 617 nm
 Focus Autofocus
 min. Resolution > 0.064 mm
 Temperature Range 0 ... 45 °C
 Atmospheric humidity 5...95%, non-condensing
 Supply Voltage 5 ... 30 V DC
 Current Consumption (Ub = 24 V) 180 mA
 Scan Rate 5 scans/sec
 Switching Output Optoisolator
 Number of Switching Outputs 3
 Switching Output / Switching Current 100 mA
 Reverse Polarity Protection yes
 Interface RS-232/Ethernet
 Trigger Input Optoisolator
 Signal Input Optoisolator
 Number of Signal Inputs 3
 Setting Method Ethernet
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP65/IP67
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin
 Minimum object distance 50 mm
 Output PNP NO/NC switchable yes
 NPN NO/NC switchable yes
 Ethernet yes
 PROFINET-I/O, CC-B yes
 EtherNet/IP yes
