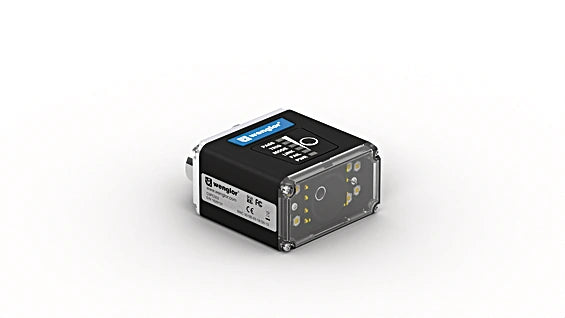

C5PC210 - Omnidirectional 1D/2D Code Scanner with Auto-Button Function

C5PC210 - Omnidirectional 1D/2D Code Scanner with Auto-Button Function

SKU: C5PC210 Download PDF

Variant:
  • C5PC210 - Omnidirectional 1D/2D Code Scanner with Auto-Button Function
Now $3,205.00
BEFORE   $0.00 Now $3,205.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the C5PC210 1D/2D Code Scanner, expertly engineered for versatile omnidirectional scanning of an array of barcodes This device efficiently decodes various 1D formats including Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, and Pharmacode It also adeptly handles a wide range of 2D codes such as DataMatrix (ECC 0 to 200), PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, and Dot code.

Additional features like an automatic button function, integrated LED lighting, and code reconstruction technology enhance its effectiveness for diverse scanning needs.

Features and Benefits:

    •Auto-button function.

    •Integrated LED illumination.

    •Integrated code reconstruction.

    •Compatible with PROFINET and EtherNet/IP.

    •Support for various code types including 1D and 2D codes.

Specifications:

 Barcode Density Standard density
 Read Range 50 ... 300 mm
 Resolution 1,280 × 960 Pixel
 Focal distance 5.2 mm
 Pixel Size 3.75 × 3.75 µm
 Light Source Red Light
 Wavelength 617 nm
 Focus Autofocus
 min. Resolution > 0.08 mm
 Temperature Range 0 ... 45 °C
 Atmospheric humidity 5...95%, non-condensing
 Supply Voltage 5 ... 30 V DC
 Current Consumption (Ub = 24 V) 180 mA
 Scan Rate 42 scans/sec
 Switching Output Optoisolator
 Number of Switching Outputs 3
 Switching Output / Switching Current < 100 mA
 Reverse Polarity Protection yes
 Interface RS-232/Ethernet
 Trigger Input Optoisolator
 Number of Signal Inputs 3
 Setting Method Ethernet
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP65, IP67
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin
 Minimum object distance 50 mm
 Output PNP NO /NC switchable yes
 NPN NO /NC switchable yes
 Ethernet yes
 PROFINET-I/O, CC-B yes
 EtherNet/IP yes
