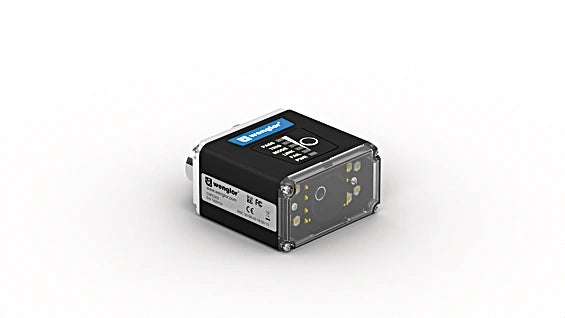

C5PC204 - Omnidirectional 1D/2D Code Scanner for Diverse Applications

SKU: SKU: C5PC204 Download PDF

Select a Variant:

C5PC204 - Omnidirectional 1D/2D Code Scanner for Diverse Applications

SET THE QTY:

Now $2,351.00 Web pricing policy

~~BEFORE $0.00~~ Now $2,351.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Capture every detail with our advanced 2D code scanners, designed for versatile omnidirectional scanning of both 1D and 2D barcodes These scanners efficiently handle a variety of code formats, including 1D types such as Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, and Pharmacode For 2D barcodes, they support DataMatrix ECC 0200, PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, and Dot code.

For any additional code types, customization is available upon request, ensuring you have the flexibility needed for your scanning needs.

Features and Benefits:

•Auto-button function.

•Integrated LED illumination.

•Integrated code reconstruction.

•Web link.

•PROFINET and EtherNet/IP interface.

•High-density barcode scanning.

Specifications:

Read Range	133 mm
Resolution	752 × 480 Pixel
X-Dimension	84 mm
Y-Dimension	54 mm
Minimum Resolution	> 0.254 mm
Temperature Range	0 ... 45 °C
Atmospheric Humidity	5...95%, non-condensing
Supply Voltage	5 ... 30 V DC
Current Consumption (Ub = 24 V)	180 mA
Scan Rate	60 scans/sec
Switching Outputs	3
Degree of Protection	IP65, IP67
Housing Material	Aluminum, anodised
Optic Cover	Plastic, PMMA
Connection	M12 × 1; 12-pin
Minimum Object Distance	125 mm
