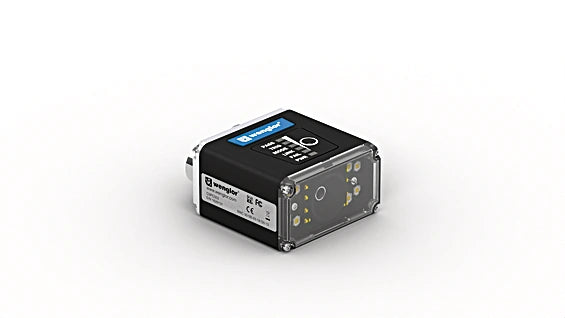

C5PC203 - Versatile 1D/2D Code Scanner for Omnidirectional Use

C5PC203 - Versatile 1D/2D Code Scanner for Omnidirectional Use

SKU: C5PC203   Download PDF

Select a Variant:
  • C5PC203 - Versatile 1D/2D Code Scanner for Omnidirectional Use
Qty:
Now $2,636.00   Web pricing policy
BEFORE   $0.00 Now $2,636.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience seamless scanning with these versatile 2D code scanners, designed for omnidirectional reading of both 1D and 2D barcodes Compatible with a wide array of code formats, this device easily processes 1D codes such as Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, and Pharmacode Additionally, it efficiently reads 2D codes including DataMatrix ECC 0200, PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, and Dot code.

For specific needs, other code types can be supported upon request.

Features and Benefits:

    •Auto-button function.

    •Integrated LED illumination.

    •Integrated code reconstruction.

    •Web link.

    •PROFINET and EtherNet/IP.

    •DPM.

Specifications:

 Barcode Density Standard density
 Read Range 50 ... 300 mm
 Resolution 752 × 480 Pixel
 Resolution (MP) 0.36 MP
 Focal distance 5.2 mm
 Pixel Size 6 × 6 µm
 Light Source Red Light
 Wavelength 617 nm
 Focus Autofocus
 Min. Resolution > 0.191 mm
 Temperature Range 0 ... 45 °C
 Atmospheric humidity 5...95%, non-condensing
 Supply Voltage 5 ... 30 V DC
 Current Consumption (Ub = 24 V) 180 mA
 Scan Rate 60 scans/sec
 Switching Output Optoisolator
 Number of Switching Outputs 3
 Switching Output/Switching Current < 100 mA
 Reverse Polarity Protection yes
 Interface RS-232/Ethernet
 Trigger Input Optoisolator
 Number of Signal Inputs 3
 Setting Method Ethernet
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP65 / IP67
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin
 Minimum object distance 50 mm
 Output PNP NO/NC switchable yes
 NPN NO/NC switchable yes
 Ethernet yes
 PROFINET-I/O, CC-B yes
 EtherNet/IP yes
