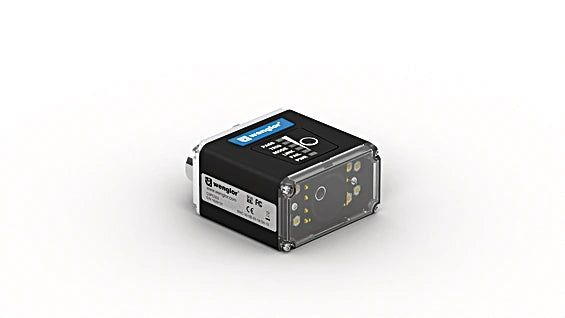

C5PC200 - Versatile 1D/2D Code Scanner for Omnidirectional Use

C5PC200 - Versatile 1D/2D Code Scanner for Omnidirectional Use

SKU: C5PC200   Download PDF

Select a Variant:
  • C5PC200 - Versatile 1D/2D Code Scanner for Omnidirectional Use
Qty:
Now $2,351.00   Web pricing policy
BEFORE   $0.00 Now $2,351.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience efficient scanning with these versatile 2D code scanners, engineered for seamless omnidirectional reading of both 1D and 2D barcodes They support a wide range of 1D formats, including Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, various Postal Codes, and Pharmacode Additionally, they are compatible with numerous 2D codes such as DataMatrix (ECC 0200), PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, and Dot Code.

For any specific code types not listed, please inquire for availability.

Features and Benefits:

    •Auto-button function.

    •Integrated LED illumination.

    •Integrated code reconstruction.

    •Read Range of 50 mm.

    •Fixed focus.

    •Robust environmental protection with IP65/IP67 rating.

Specifications:

 Barcode Density Standard density
 Resolution 752 × 480 Pixel
 Focal distance 5.2 mm
 Pixel Size 6 × 6 µm
 Light Source Red Light
 Wavelength 617 nm
 X-Dimension 49 mm
 Y-Dimension 32 mm
 min. Resolution > 0.191 mm
 Temperature Range 0 ... 45 °C
 Atmospheric humidity 5...95%, non-condensing
 Supply Voltage 5 ... 30 V DC
 Current Consumption 180 mA
 Scan Rate 60 scans/sec
 Switching Output Optoisolator
 Number of Switching Outputs 3
 Switching Output/Switching Current < 100 mA
 Reverse Polarity Protection yes
 Interface RS-232/Ethernet
 Trigger Input Optoisolator
 Number of Signal Inputs 3
 Setting Method Ethernet
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP65, IP67
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin
 Minimum object distance 40 mm
 Output PNP NO/NC switchable yes
 NPN NO/NC switchable yes
 Ethernet yes
 PROFINET-I/O, CC-B yes
 EtherNet/IP yes
